Widely used structure, stable, convenient to install, welcomed by the customer. Recommended environment: Low snow load and wind load.
One-Stop Global Solar Module Mounting Structure Supplier

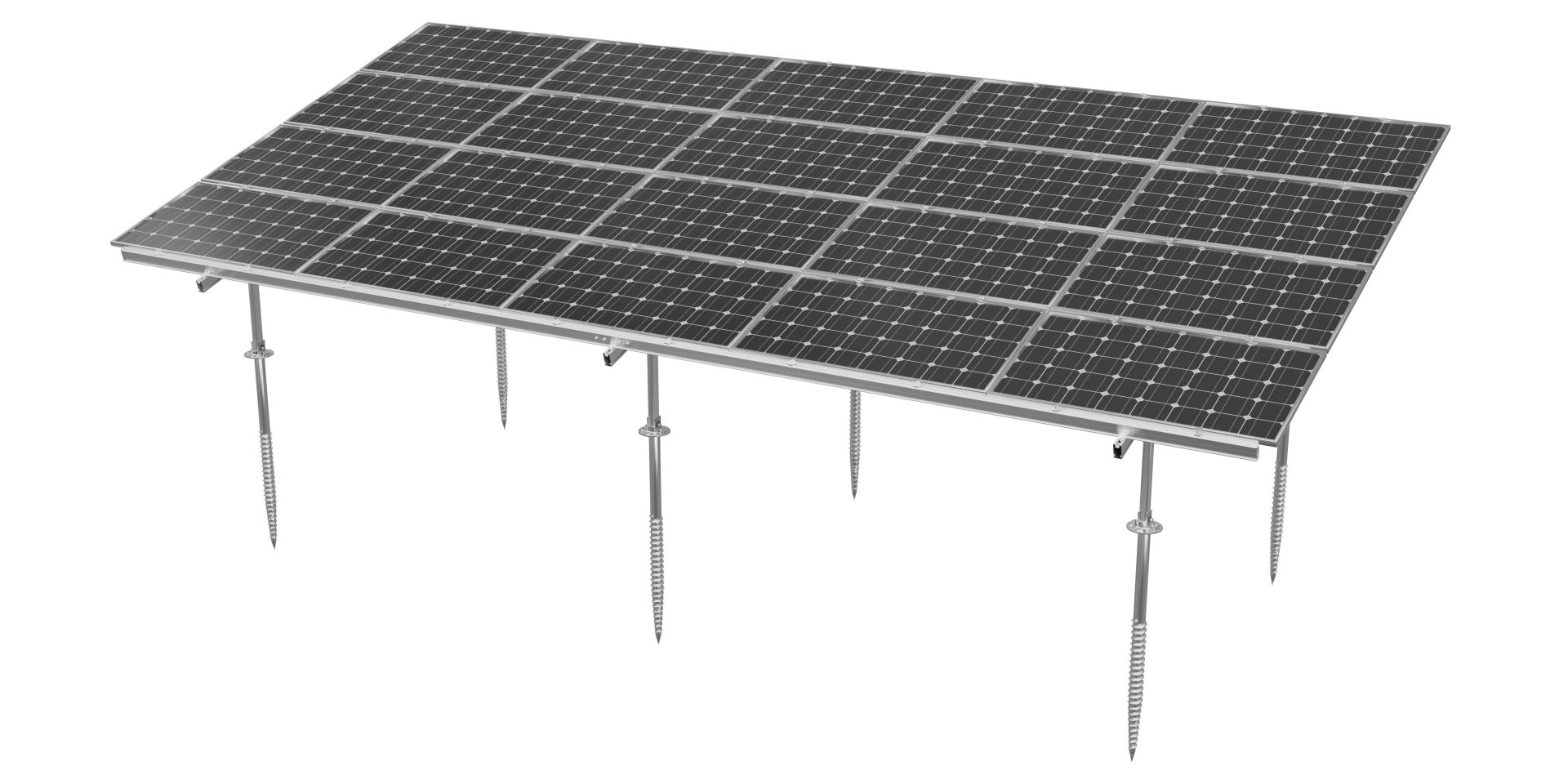

The core competitiveness of aluminum helical pile foundations lies in "fast on-site construction speed, environmental friendliness, and strong adaptability to terrain".
Color :
Natural silver（Colored according to customer requirements）Certification :
TÜV、CE、SGS、ULMaterial :
Anodized Aluminum 6005-T501 Product Description

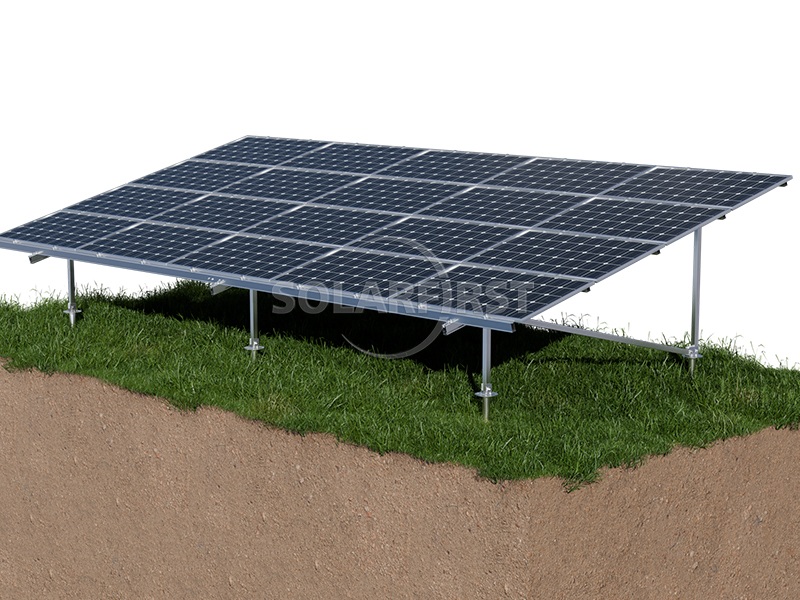

This solar panel mounting system is a highly anti-corrosion mounting structure for ground solar power project with its aluminium alloy 6005 and 304 stainless steel material . The beams and supports will be pre-assembled on the factory before delivery, to save working time on site. The special base plate design ensures adjustable range on height and front-back direction, to adapt installation site. Different structure type will be chosen according to site conditions and load requirements.

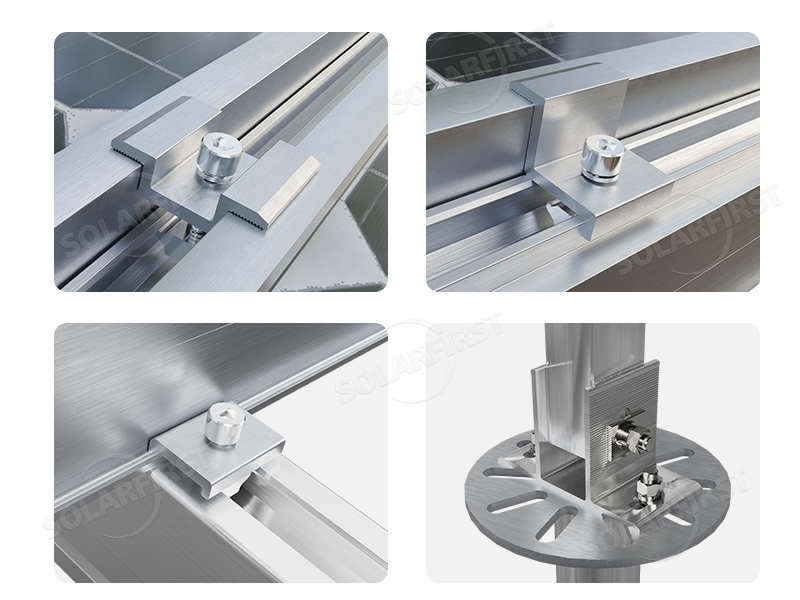

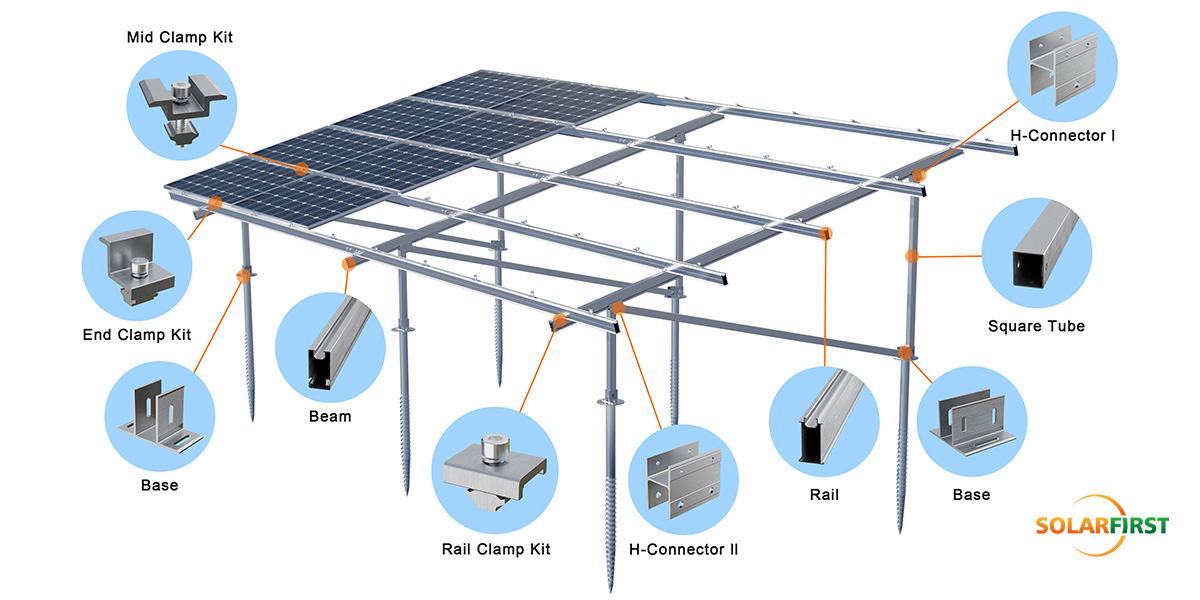

02 Accessory schematic diagram

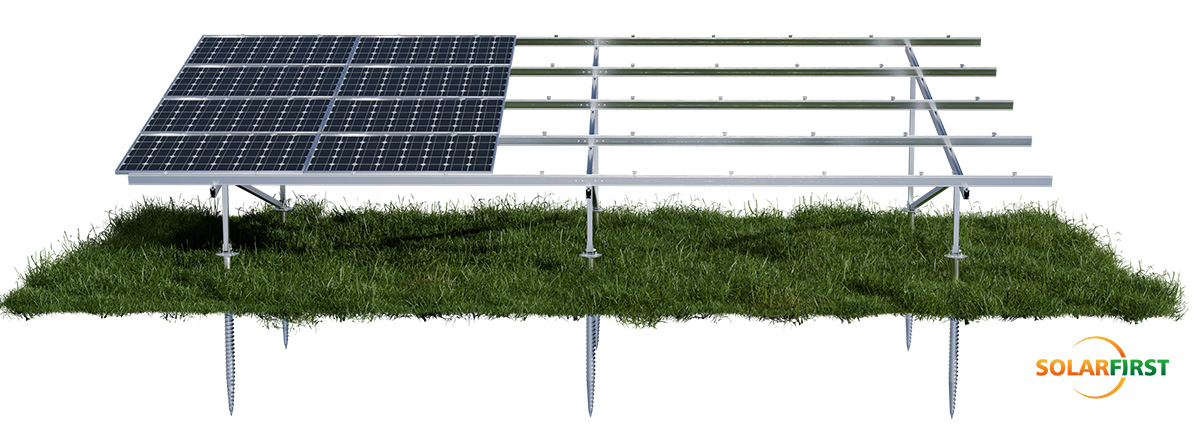

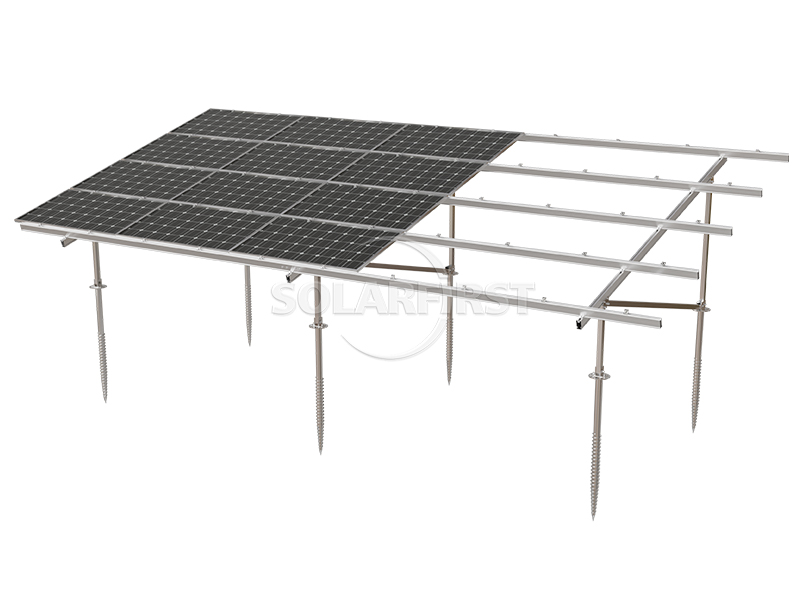

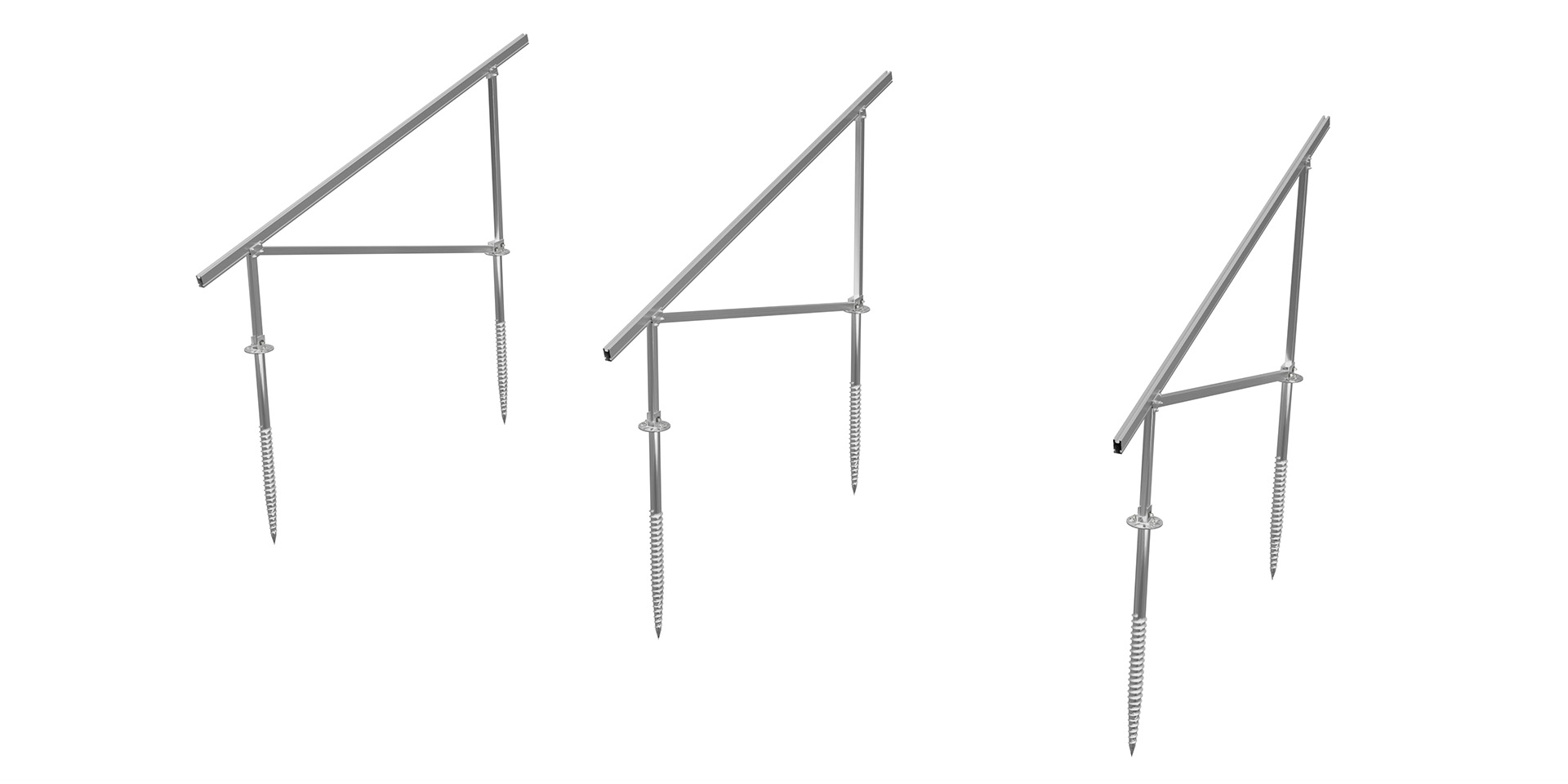

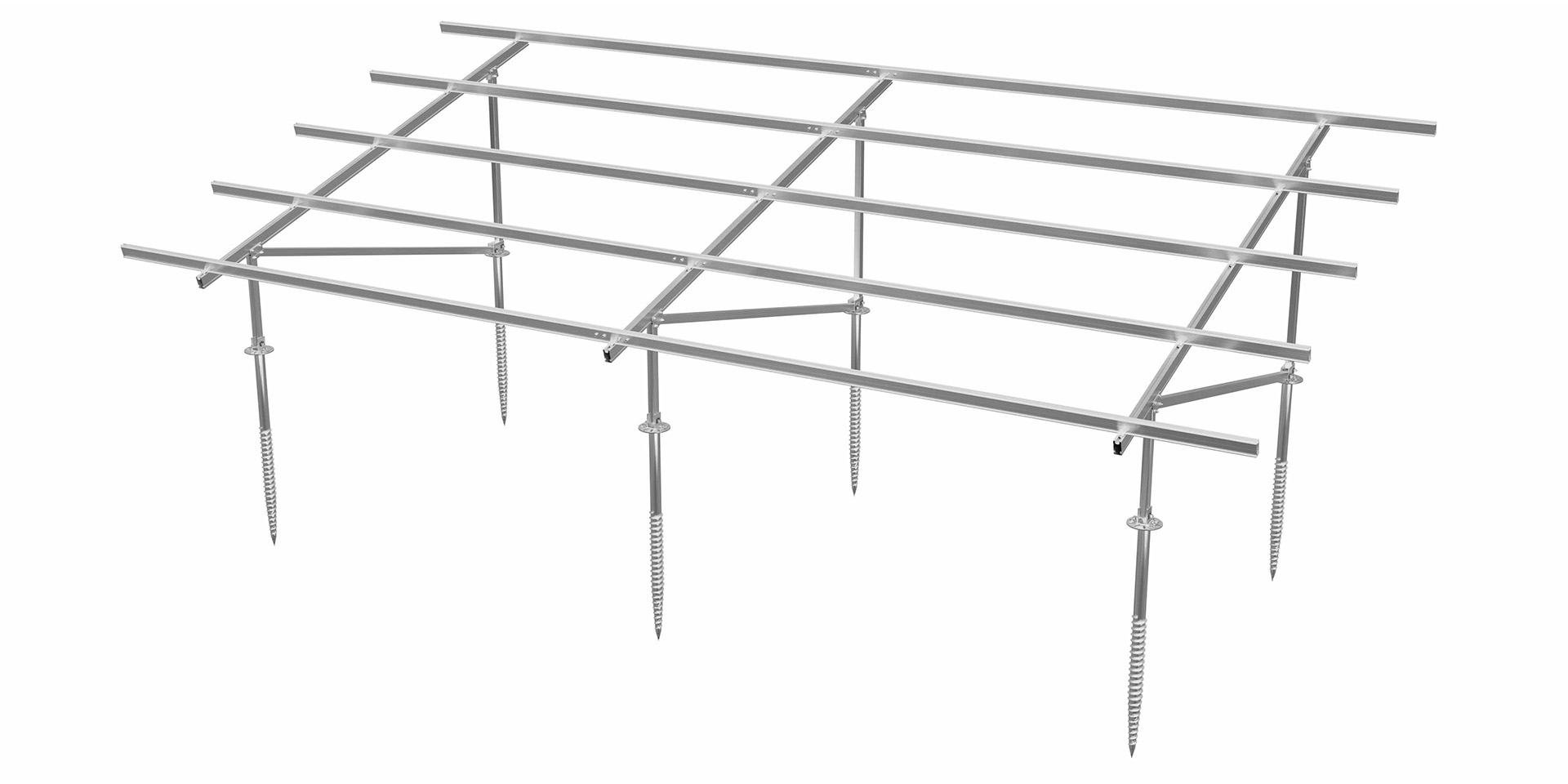

03 Structural types
05 Core Engineering Parameters
| Key indicators | Parameter details |
| Applicable roof | Ground |
| Wind load | 60m/s |
| Snow load | 1.4 kN/m² |

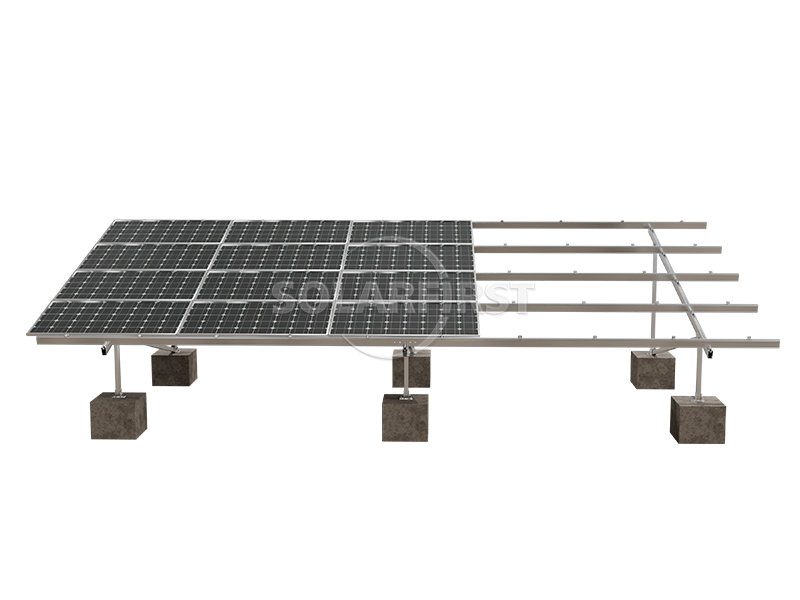

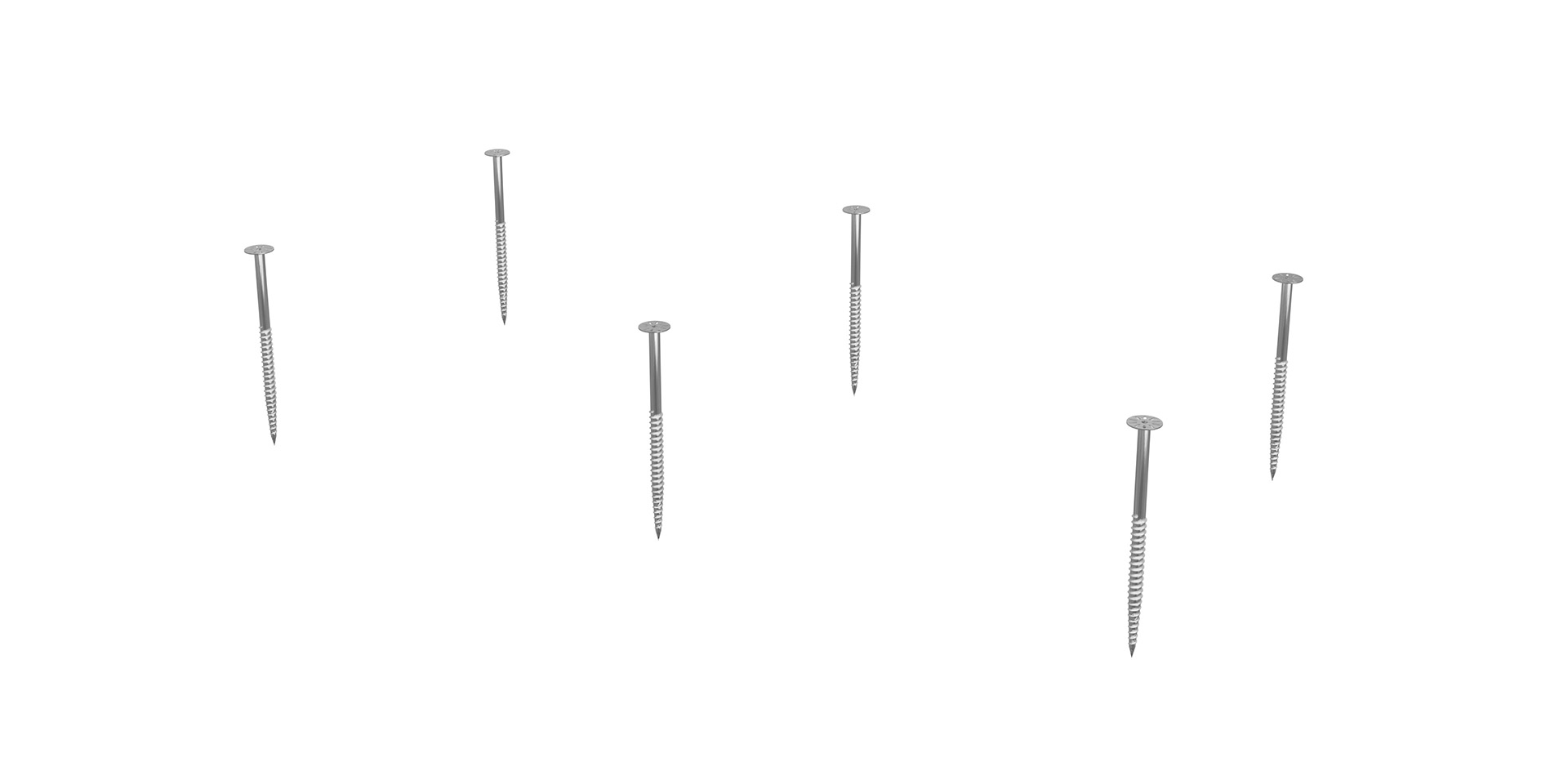

| Foundation | Screw Pile / Concrete |
| Main material | GB50009-2012, EN1990:2002, ASCE7-05, AS/NZS1170, JIS C8955:2017,GB50017-2017 |
| standard | Anodized Aluminum AL6005-T5, Hot Dip Galvanized Steel, Zn-Al-Mg Pre-Coated Steel, Stainless Steel SUS304 |
| Warranty | 10 Years Warranty |
06 Selection suggestions for different scenarios
✔ Agricultural greenhouse (solar-agricultural hybrid)
The upper level generates electricity while the lower level is used for cultivation, increasing land utilization by more than 100%; the support frame height is adjustable, providing shade and rain protection, and supporting both helical pile and concrete foundation options.
✔ Coastal/Salt Spray Areas
Aluminum alloy + helical piles avoid the challenges of salt spray corrosion and foundation excavation; the support system uses 6005-T5 aluminum alloy with dual protection from anodizing and powder coating, ensuring a design life of over 25 years in coastal environments.
✔ Hilly/sloping terrain
Adjustable support frame (±15° ～ ±25°) + helical ground piles reduce site leveling work and maximize power generation by approximately 5% ～ 8% through adjustable angle.
07 Features
▶ Materials and Specifications:
The bracket is made of AL6005-T5 aluminum alloy, and the bolts are made of SUS304 stainless steel; it offers a 10-year warranty and a service life of 20-25 years, and can withstand wind speeds up to 60 m/s and snow pressure of 1.4 kN/m².
▶ Adjustment and Versatility:
The support system is adjustable front to back and height, accommodating solar panels of any brand, frameless or frameless.
08 Technical verification system
Provide standardized installation videos, operation manuals and on-site technical guidance to ensure zero error in construction.
▶ Extreme environmental testing
• Pass the low-temperature impact at -40℃
• Salt spray corrosion (3,000 + hours)
• Extreme tests such as 60m/s hurricane simulation.
▶ Third-party certification
• We hold wind pressure, snow pressure, seismic resistance and material certification certificates issued by TUV, SGS and other institutions to ensure the compliance of global projects.
09 Packages & Shipping
International standard packaging; Goods are dispatched from Shanghai, Ningbo, Tianjin, Xiamen and Shenzhen ports in China.

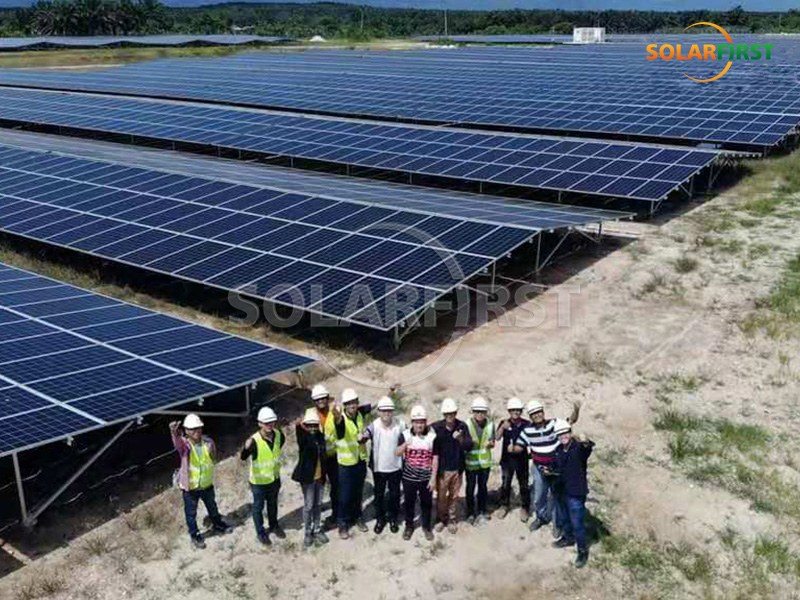

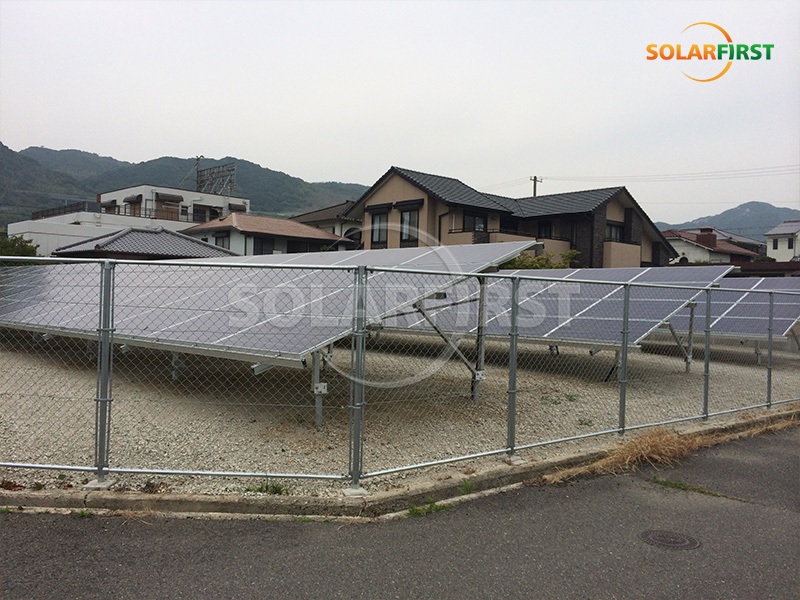

10 Project Case

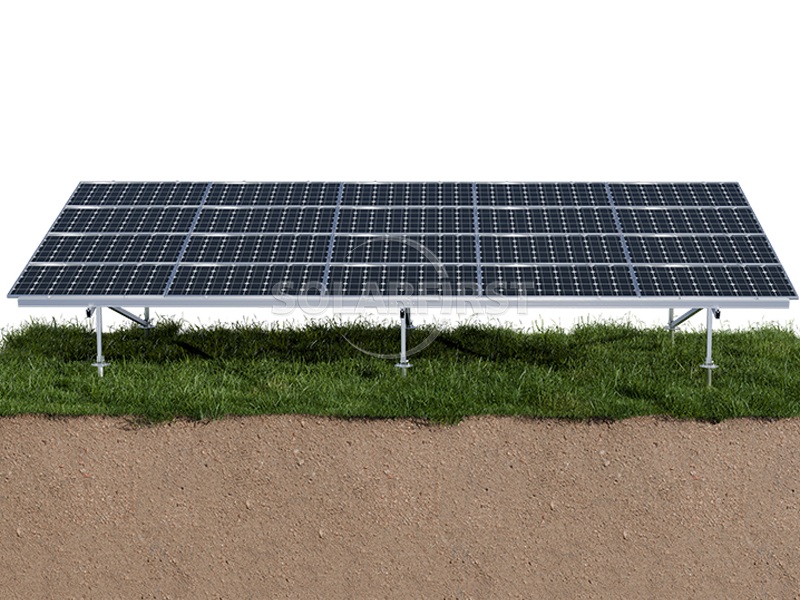

Solar First's ground-mounted solar system is an east-west adjustable, pre-assembled bracket solution designed for large commercial and utility ground-mounted solar installations. It utilizes a durable helical pile foundation, ensuring rapid deployment, robust structural support, and long-term corrosion resistance.
Details
The core competitiveness of aluminum helical pile foundations lies in "fast on-site construction speed, environmental friendliness, and strong adaptability to terrain".
Details

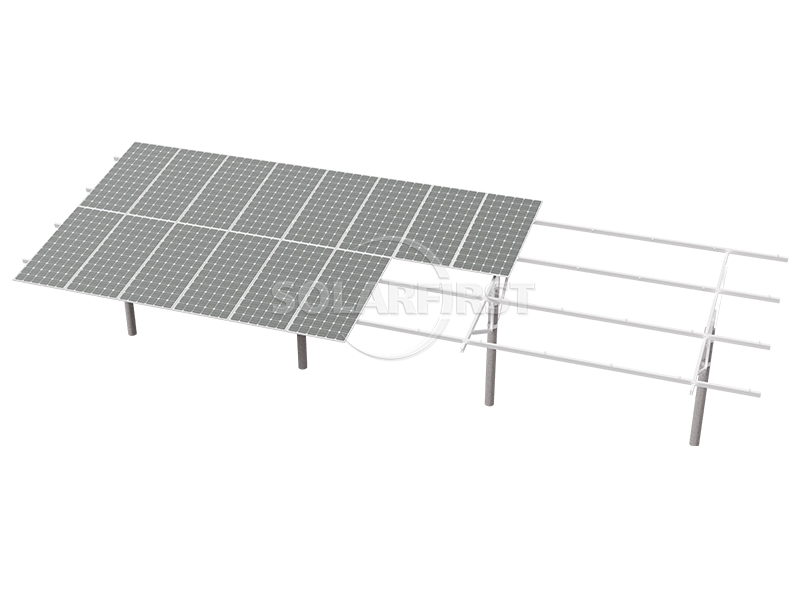

The Solar First Inward-Curved C-Shaped Steel Ground Mounting System is a high-performance solution designed for large-scale ground-mounted plants and projects on complex terrain.
Details
