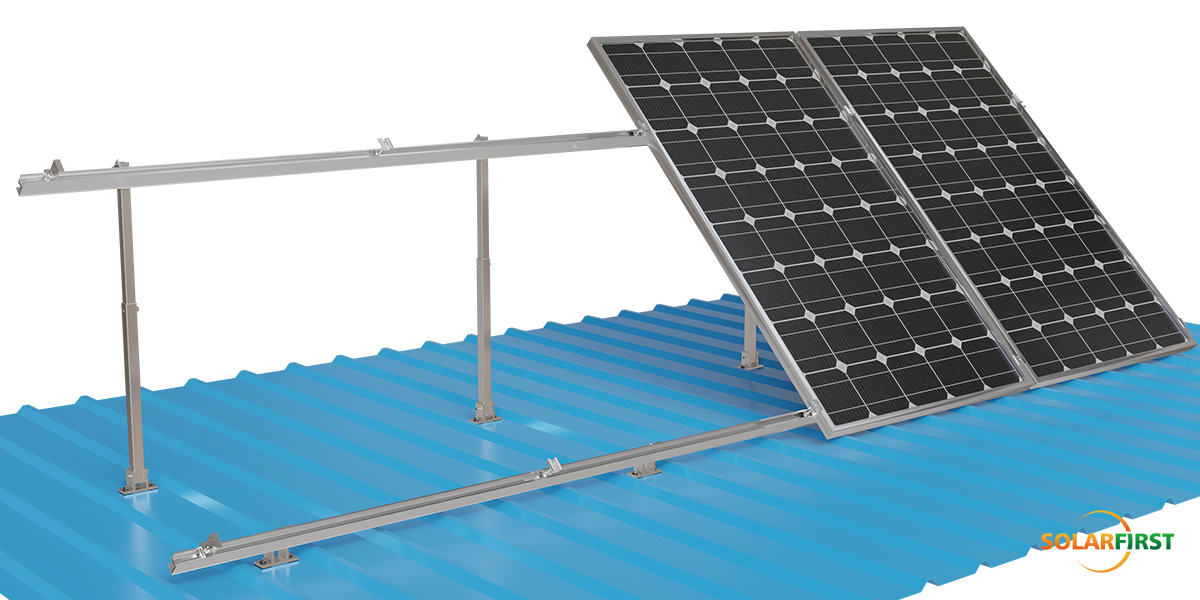

Metal roof mounts with adjustable legs are widely available, typically designed as part of solar panel mounting systems to optimize the panel tilt angle for maximum energy production. These systems often utilize durable anodized aluminum and stainless steel components.
Color :
Silver blackMaterial :
Anodized Aluminum 6005 T5, Stainless Steel 304Certification :
ISO，SGS，CE01 Product Description

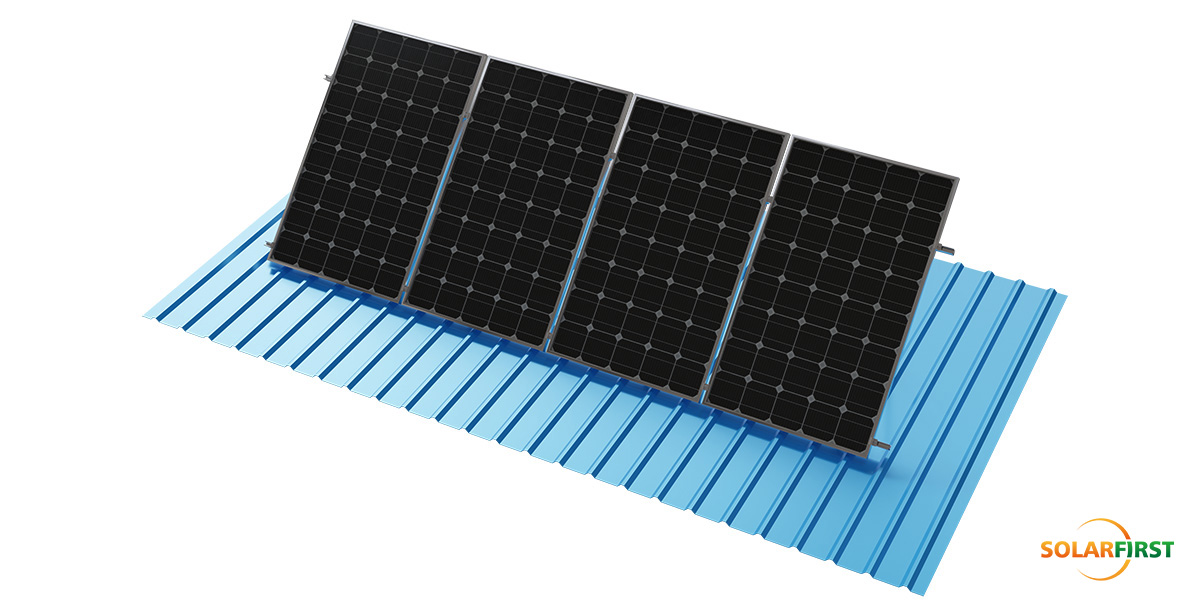

Unlock the potential of any roof type -- pitched metal or flat -- with our adaptable solar mounting system, ideal for projects of any scale.
Achieve the perfect power-generating angle quickly and easily with our adjustable telescoping legs. Adjustable angle range is customizable. The lightweight aluminum build protects your roof structure from unnecessary stress without compromising on strength.
This solution is designed for ultimate installer flexibility, mount on both ballast (on concrete roof) and direct-attach (on metal roof) installation methods to suit your specific roof requirements.

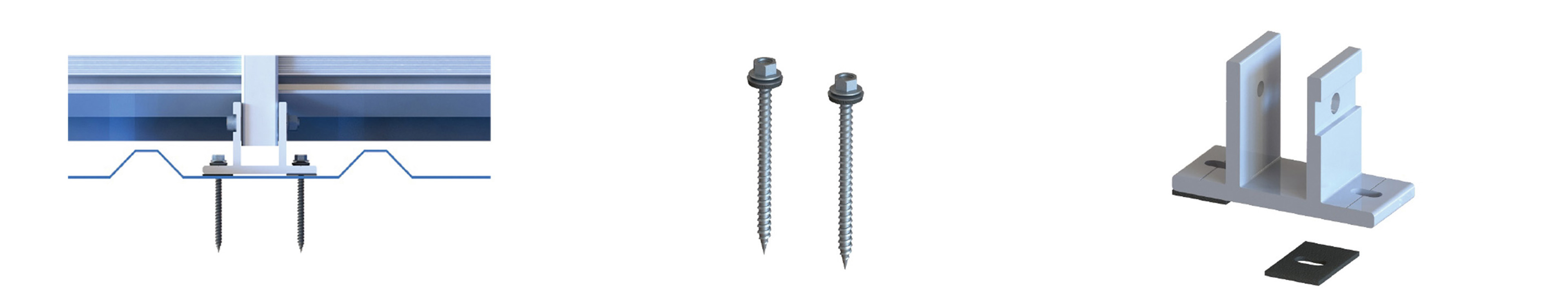

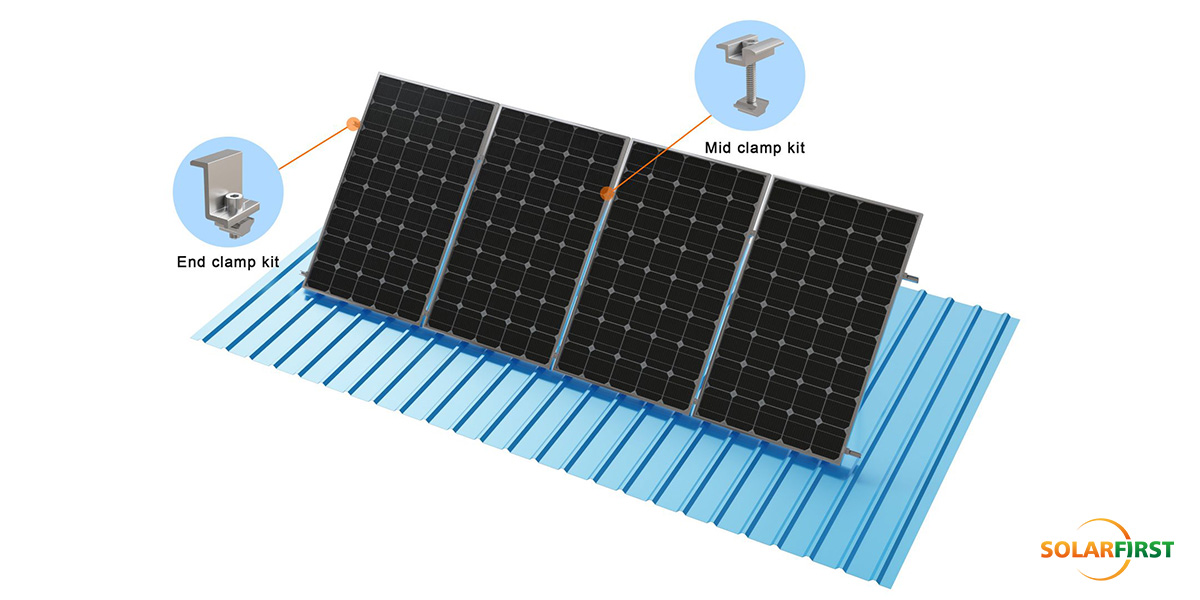

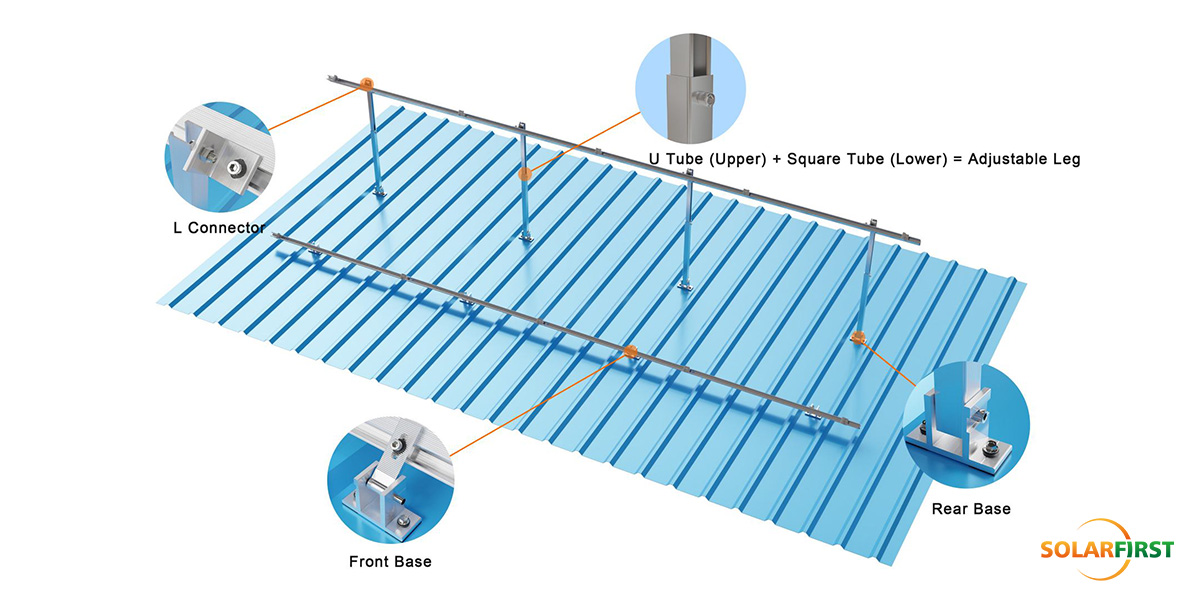

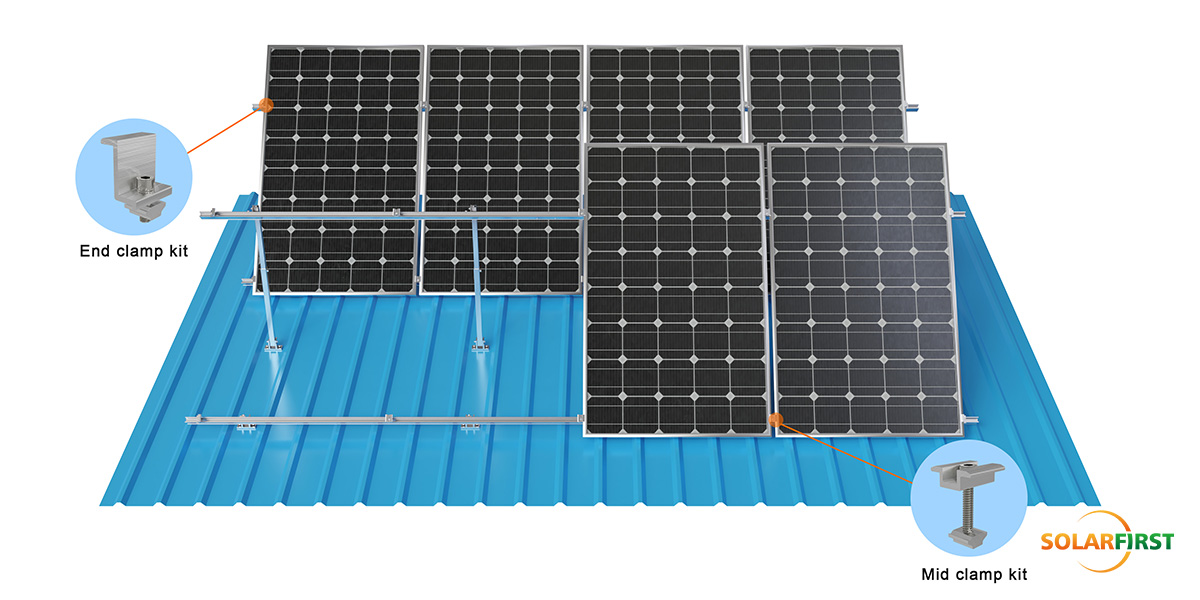

02 Accessory schematic diagram

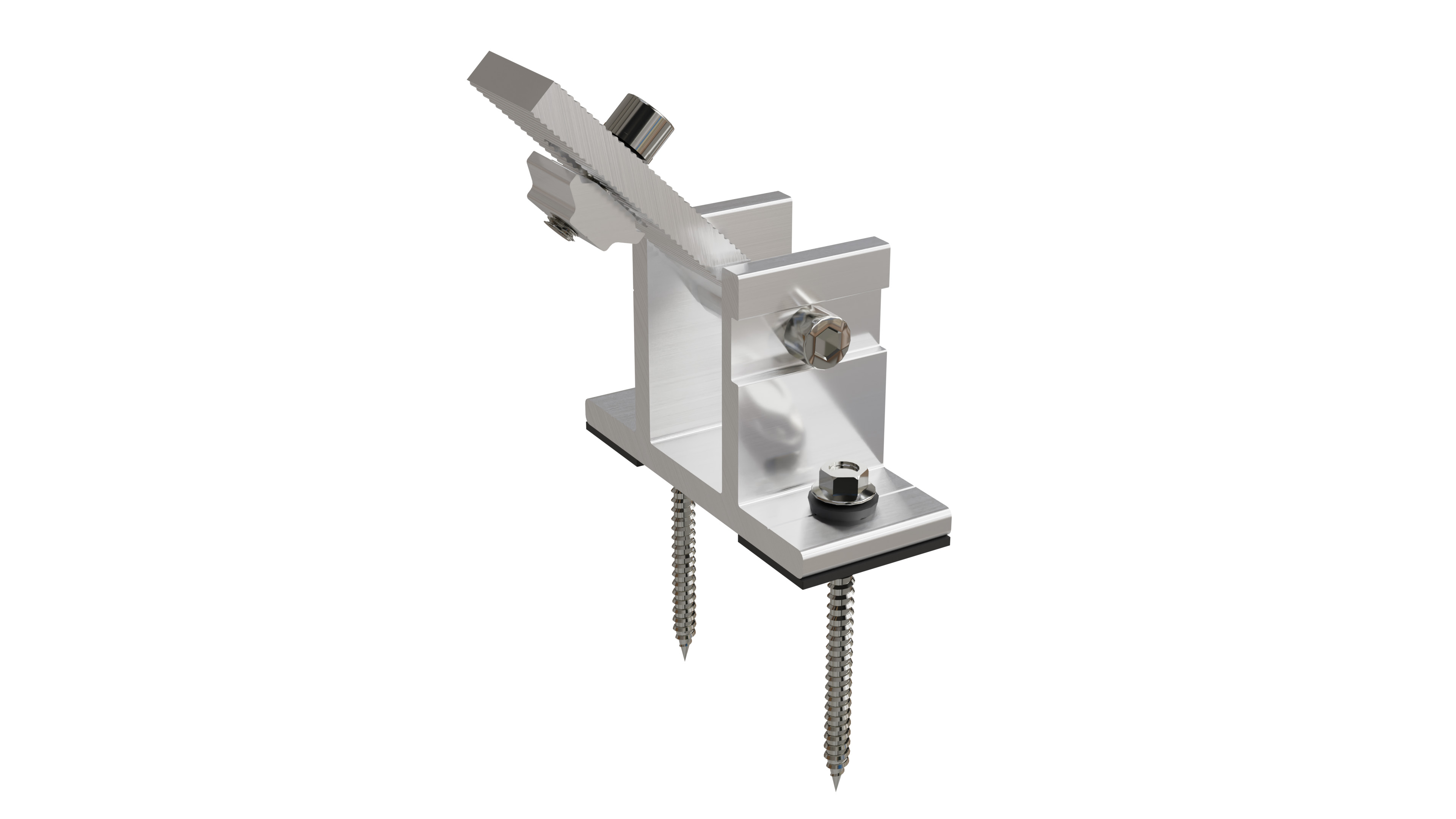

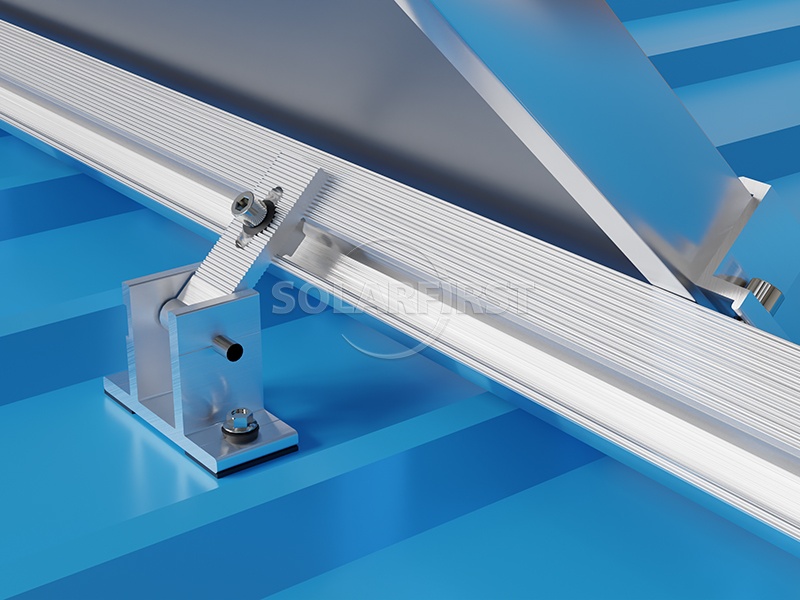

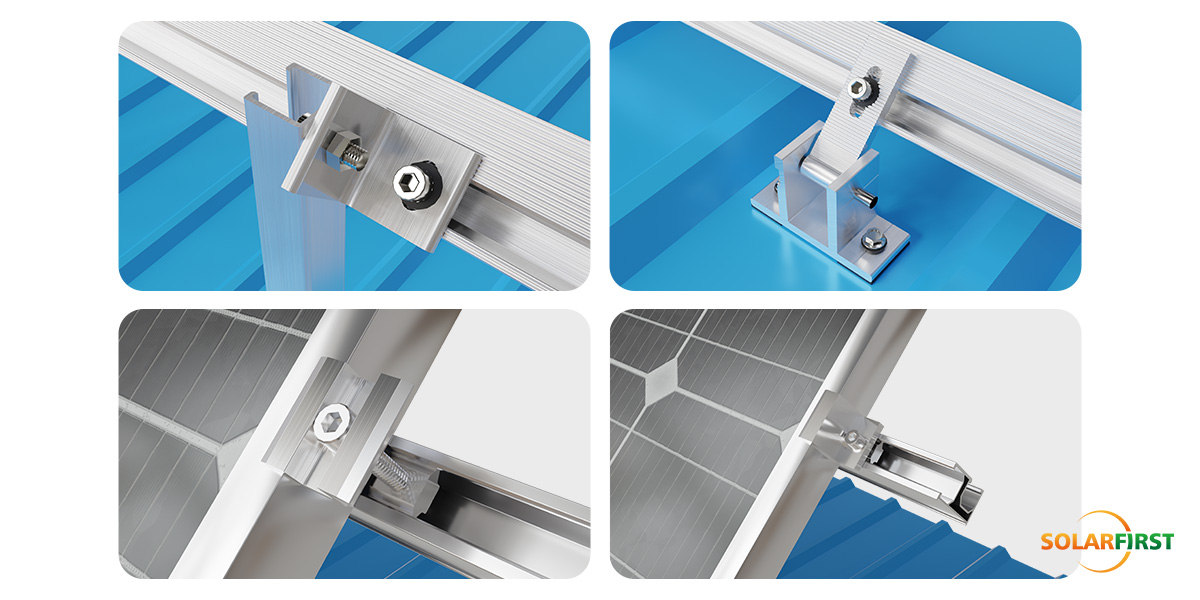

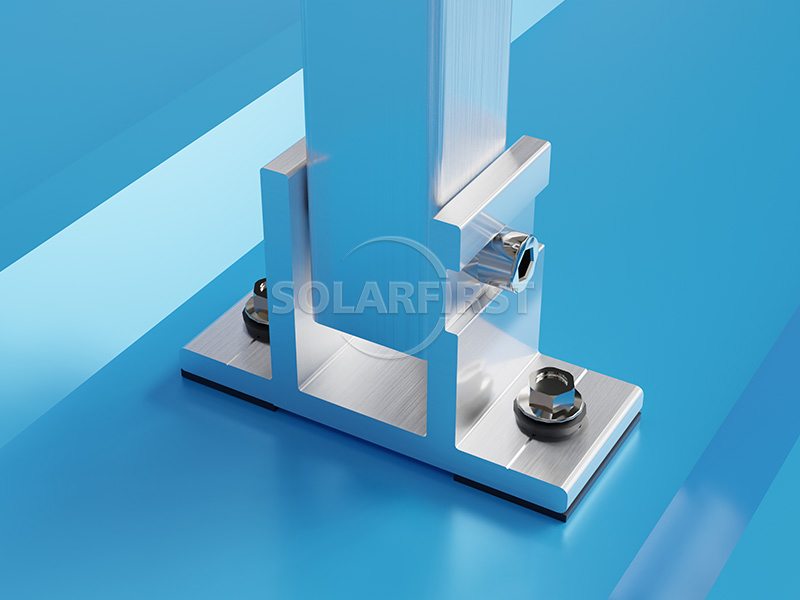

03 Product Components
04 Core Engineering Parameters
| Key indicators | Parameter details |
| Applicable roof | Trapezoidal metal tile roof |
| Wind load | 60m/s |
| Snow load | 1.4 kN/m² |
| Tilt Angle | 5°~45° |
| Main material | Anodized Aluminum AL6005-T5, Stainless Steel SUS304 |
| standard | GB50009-2012, EN1990:2002, ASCE7-05, AS/NZS1170, JIS C8955:2017,GB50429-2007 |
| Warranty | 10 Years Warranty |
05 Industry Application Scenarios
✔ Manufacturing factory: Roof of automotive/electronic factory buildings
✔ Cold chain logistics center: Large warehouse roof
✔ Agricultural greenhouse upgrade: Light steel frame greenhouse
06 Professional technical services
▶ Scheme design and structural analysis:
Provide professional solution drawings, structural analysis reports, installation manuals, or assembly drawings.
▶ On-site survey:
Engineers conduct on-site surveys of the roof conditions to confirm installation conditions and risk points.
▶ Installation training and guidance:
Provide installation videos, installation manuals and on-site technical guidance to ensure safe and complete installation.
07 Technical verification system
▶ Extreme environmental testing
• Pass the low-temperature impact at -40℃
• Salt spray corrosion (3,000 + hours)
• Extreme tests such as 60m/s hurricane simulation.
▶ Third-party certification
• We hold wind pressure, snow pressure, seismic resistance and material certification certificates issued by TUV, SGS and other institutions to ensure the compliance of global projects.

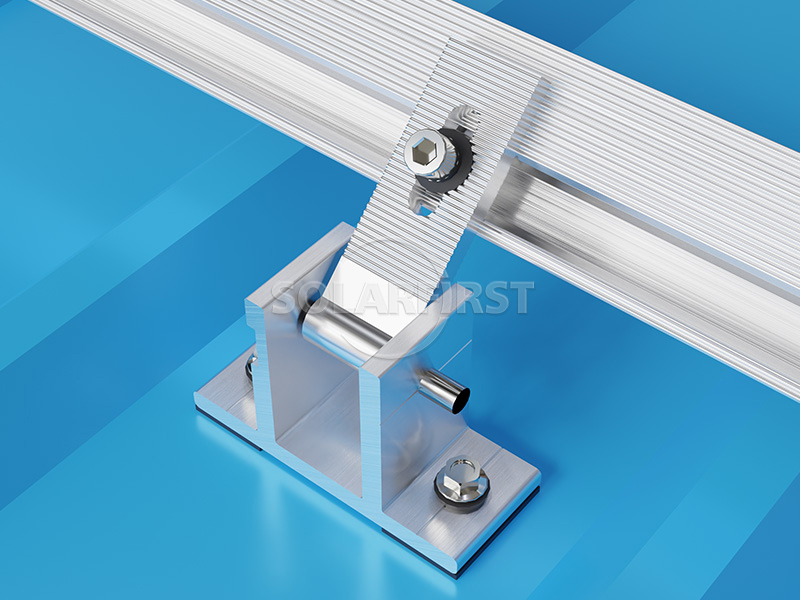

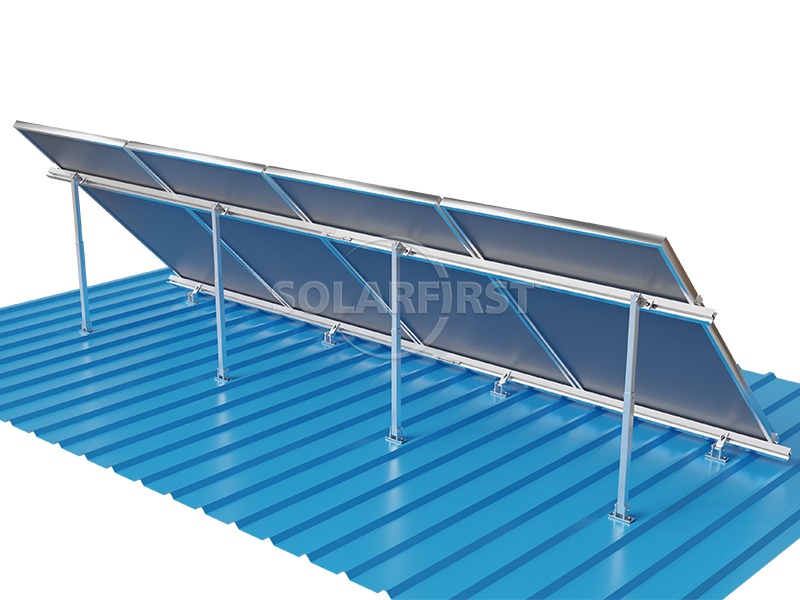

08 Adjustable Tilt System

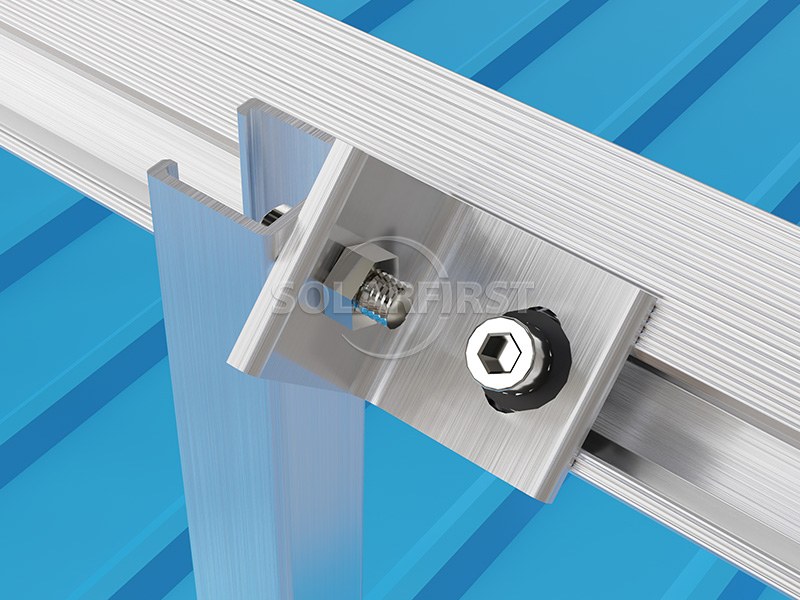

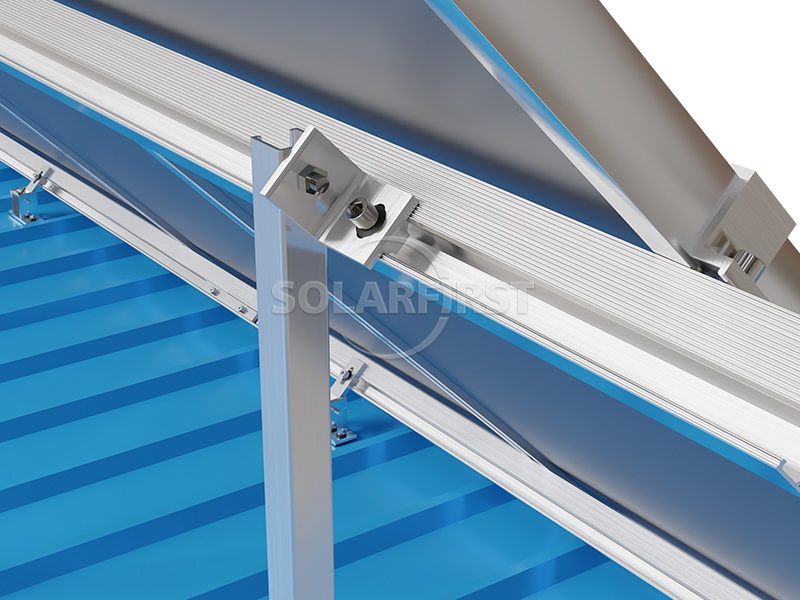

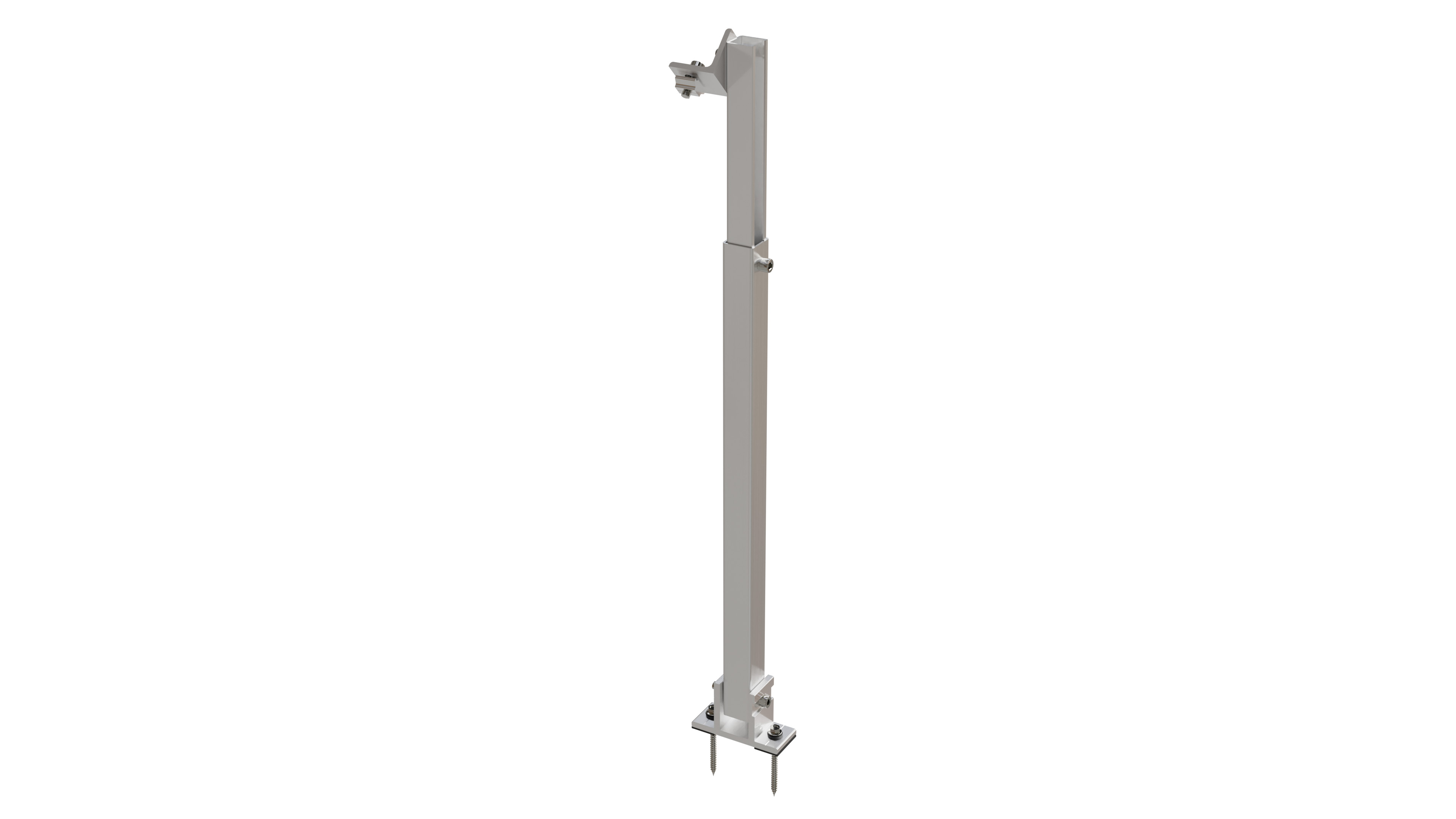

Features a unique design of inner and outer tubes with an adjustable joint for strength and compatibility with standing seam clamps.

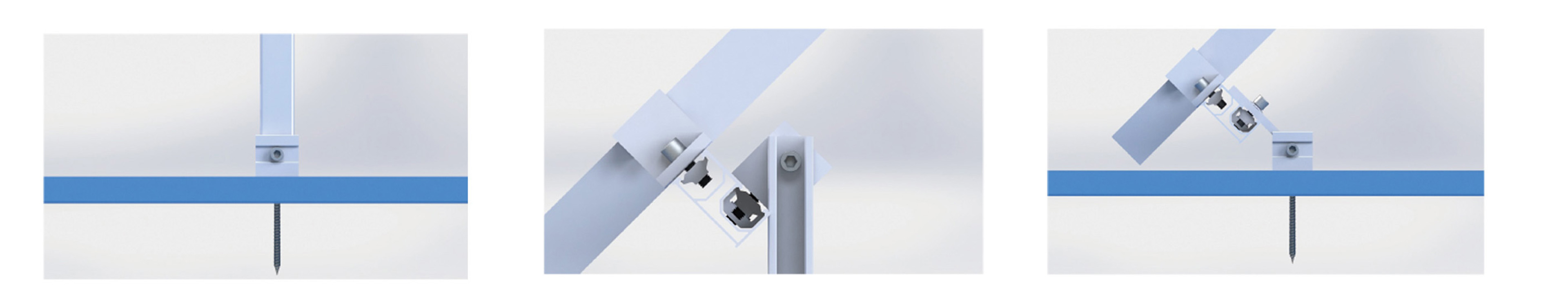

Offers several tilt angle options, to suit different sun exposure requirements.
Many components are pre-assembled to facilitate quick and easy installation, saving labor costs.
Made of stainless steel and anodized aluminum alloy, it is durable in harsh environments.
Compatible with various metal roof types, including standing seam, trapezoidal, and corrugated metal sheets.

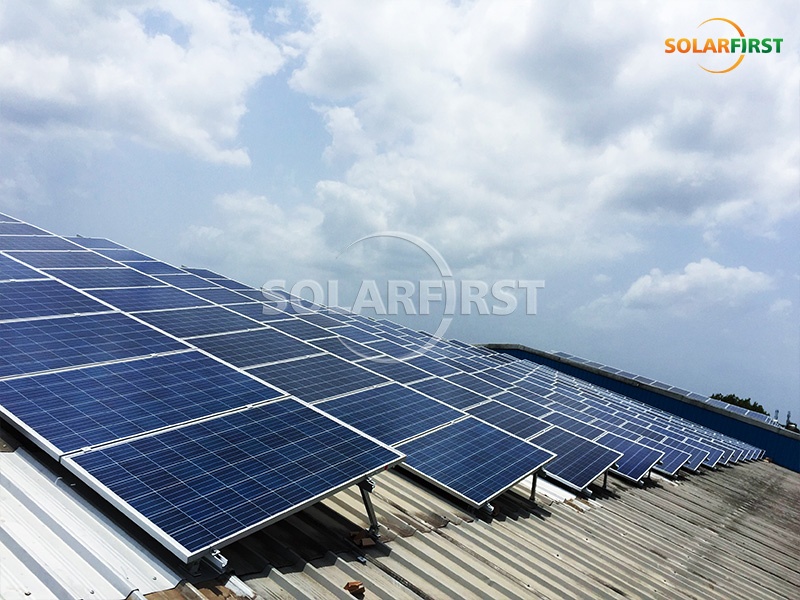

09 Project Case
