The building-integrated photovoltaic (BIPV) roof system revolutionizes the traditional roof construction model, using solar modules as the core building envelope structure and directly replacing metal roof panels or tiles. The system adopts an innovative stepped drainage design. Through precise water guide channels and eaves water collection systems, it achieves 100% zero leakage guarantee (certified by EN 13830 dynamic water tightness), completely eliminating the risk of rainwater intrusion.
01 Product Description

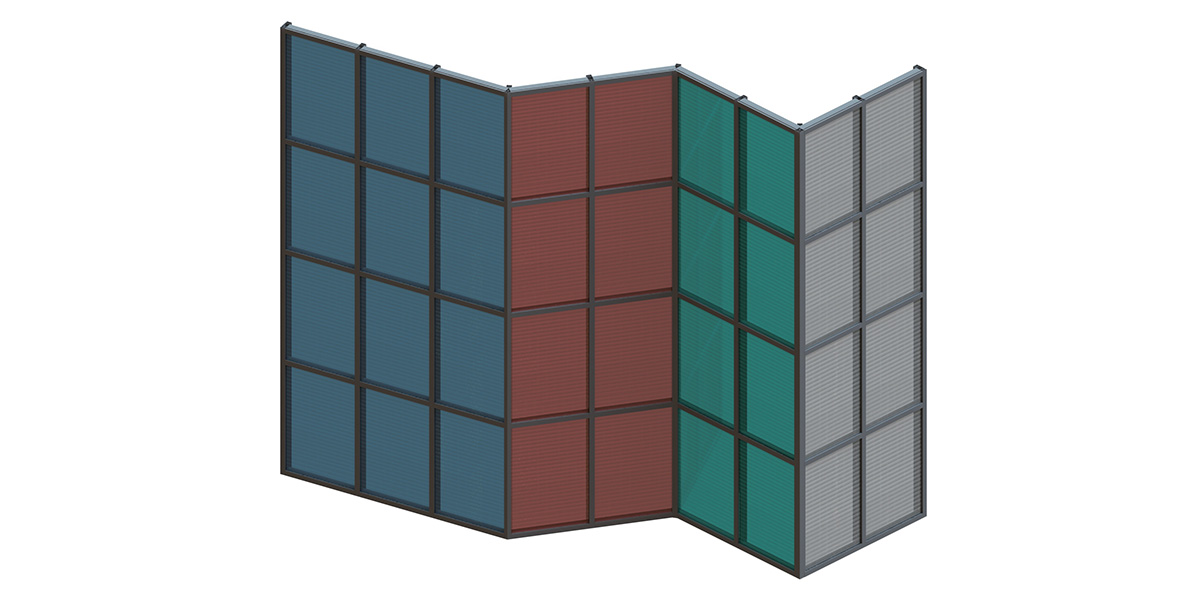

The SFPVROOM photovoltaic curtain wall system integrates the power generation function with the building envelope, directly replacing the traditional glass curtain wall. It adopts tempered glass and a metal frame structure, achieving four functions: wind resistance, snow resistance, water resistance and light transmission. It supports full shape customization including curved surfaces, straight lines, square shapes and circular shapes. It has passed the EN13830 standard certification, with a wind resistance of 42m/s and a snow load capacity of 35cm.
✅ Customized architectural aesthetics
• Free design of shape: curved surface, straight line, square, circle, irregular shape
• Multi-color anodized aluminum: Matches the architectural exterior color tone (optional)
✅ Double heat insulation guarantee
• Photovoltaic module layer: Reflects part of the solar radiation
• Heat-insulating aluminum profiles: Blocking heat conduction
✅ Structure
• 42m/s wind load resistance (EN13830 dynamic test)
• 35cm snow load resistance (verified at -30℃)
• The waterproof performance complies with the ASTM E331 water spray test

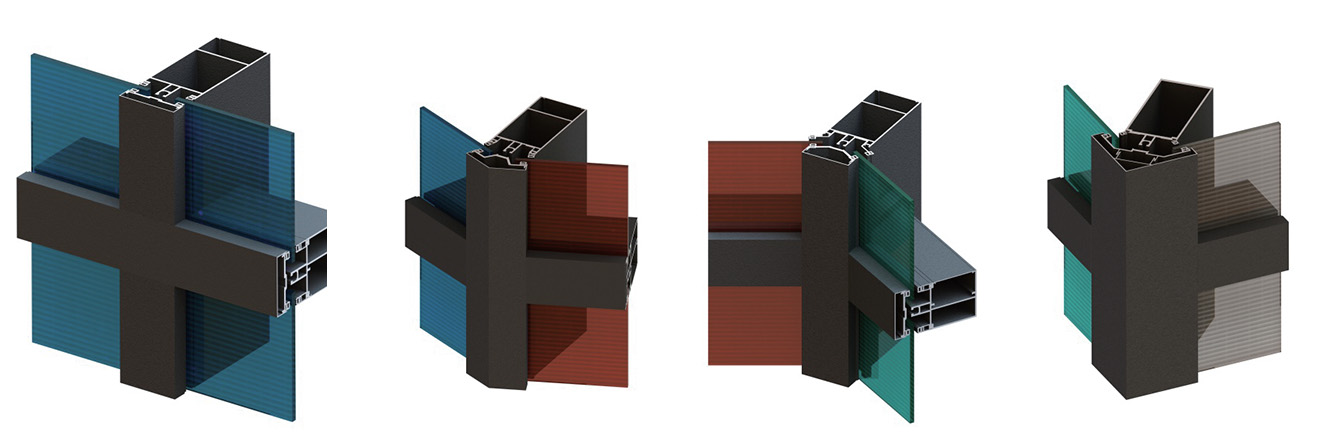

02 Accessory schematic diagram
03 Product Components
04 Core Engineering Parameters
| Key indicators | Parameter details |
| Installation | BIPV Roof |
| Wind Load | up to 60m/s |
| Tilt Angle | ≥3° |
| Snow Load | 1.4kn/m² |
| Standards | GB50009-2012, EN1990:2002, ASCE7-05, AS/NZS1170, JIS C8955:2017,GB50017-2017 |
| Material | Anodized Aluminum AL6005-T5, Stainless Steel SUS304, Hot Dip Galvanized Steel |
| Warranty | 10 Years Warranty |
05 Industry Application Scenarios
✔ For Houses and Villas
✔ For Commercial Building
✔ For Building
✔ Facade For Fence
06 Professional technical services
▶ Scheme design and structural analysis:
Provide customized load calculation reports (including wind load/snow load/seismic force analysis).
▶ On-site exploration support:
Engineers conduct on-site investigations of geological conditions (soil bearing capacity/slope/corrosive environment).
▶ Installation training and guidance:
Provide standardized installation videos, operation manuals and on-site technical guidance to ensure zero error in construction.
07 Technical verification system
Provide standardized installation videos, operation manuals and on-site technical guidance to ensure zero error in construction.
07 Technical verification system
▶ Extreme environmental testing
• Pass the low-temperature impact at -40℃
• Salt spray corrosion (3,000 + hours)
• Extreme tests such as 60m/s hurricane simulation.
▶ Third-party certification
• We hold wind pressure, snow pressure, seismic resistance and material certification certificates issued by TUV, SGS and other institutions to ensure the compliance of global projects.
08 Packages & Shipping
International standard packaging; Goods are dispatched from Shanghai, Ningbo, Tianjin, Xiamen and Shenzhen ports in China.

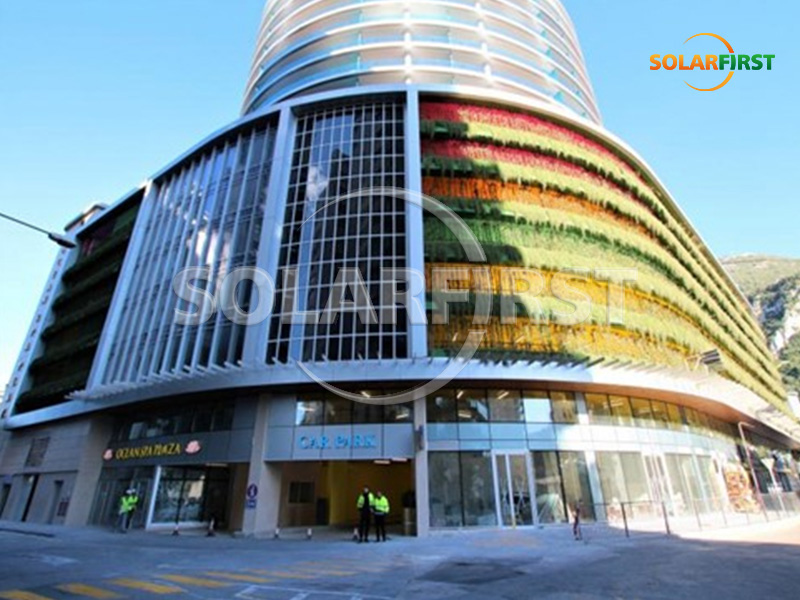

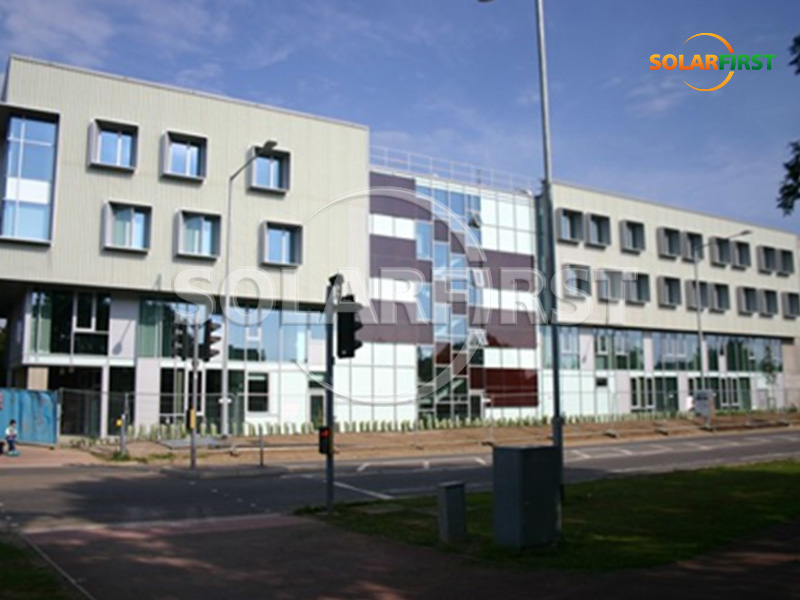

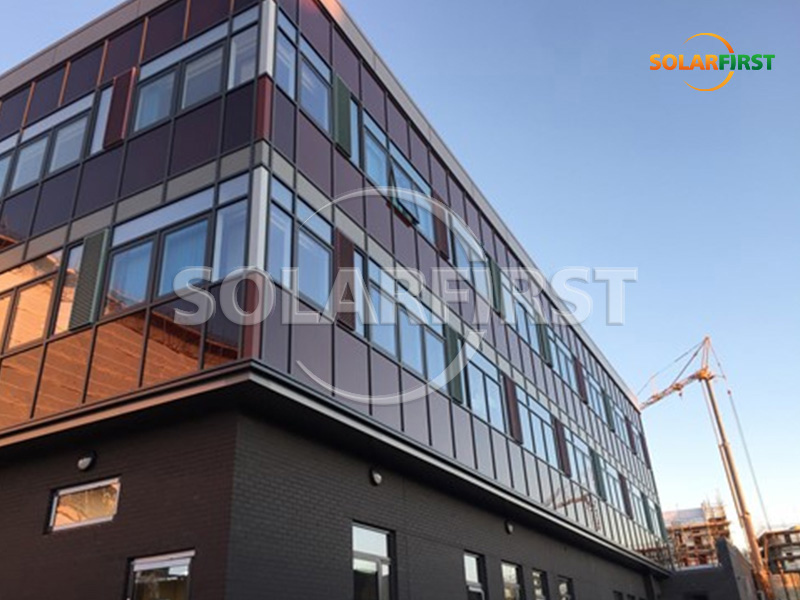

09 Project Case
The building-integrated photovoltaic (BIPV) roof system revolutionizes the traditional roof construction model, using solar modules as the core building envelope structure and directly replacing metal roof panels or tiles. The system adopts an innovative stepped drainage design. Through precise water guide channels and eaves water collection systems, it achieves 100% zero leakage guarantee (certified by EN 13830 dynamic water tightness), completely eliminating the risk of rainwater intrusion.
