inward-curved C-shaped stee

01 Product Description

This solar module mounting system is a highly anti-corrosion mounting structure for ground installation with its aluminum alloy 6005 and 304 stainless steel material .

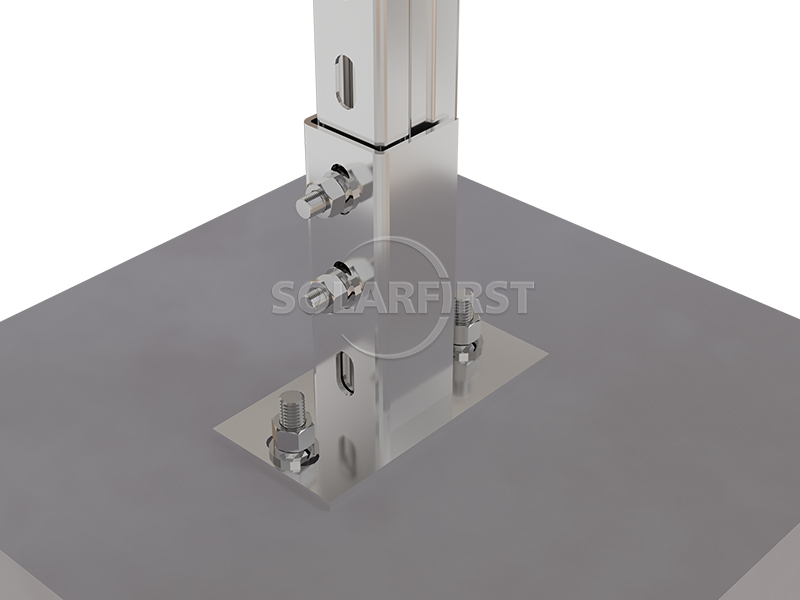

The beams and supports will be pre-assembled on our factory before delivery, to save on site working time. Special base plate design ensures adjustable range on height and front-back direction, to adapt installation site.

Different structure type will be chosen according to site conditions and load requirements.

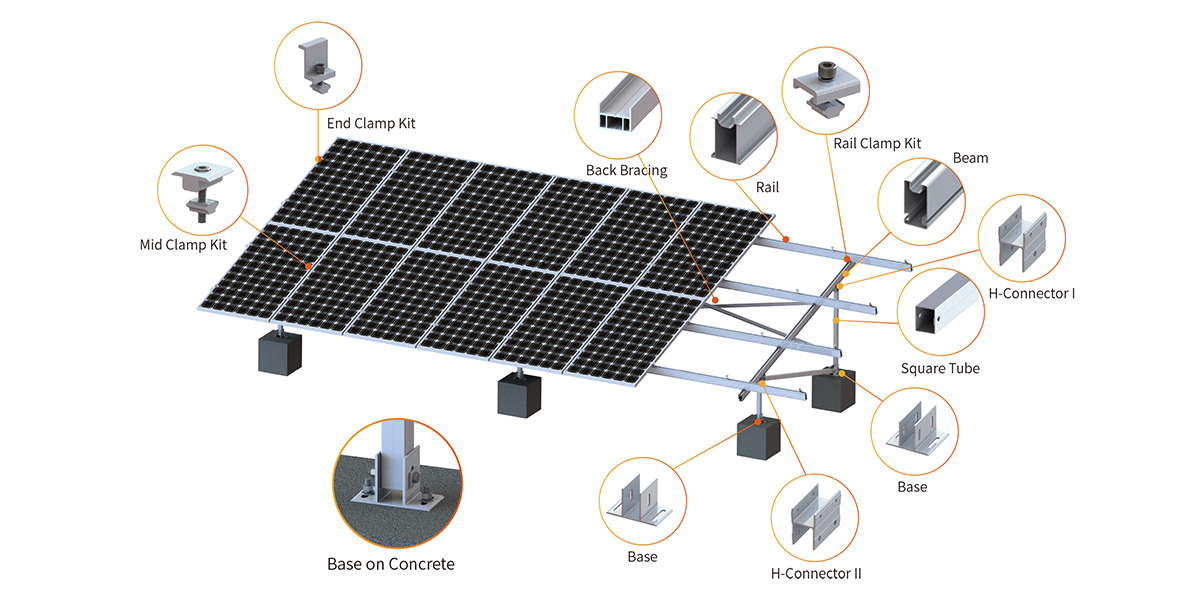

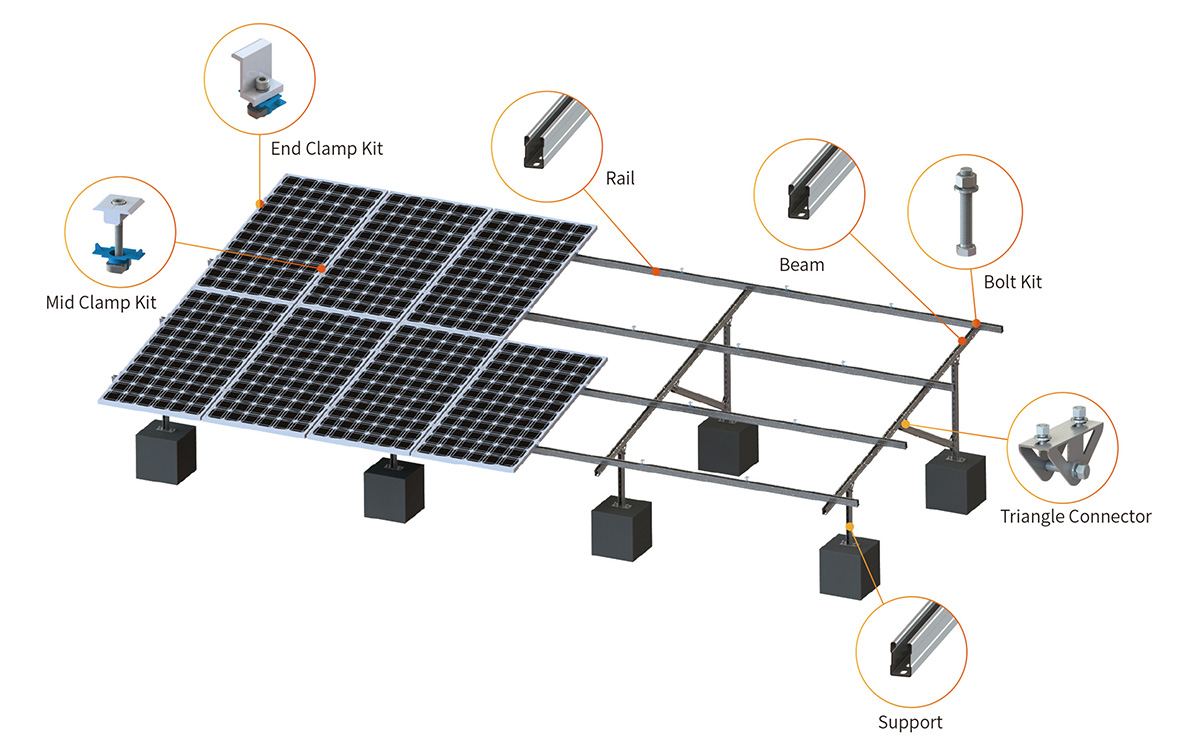

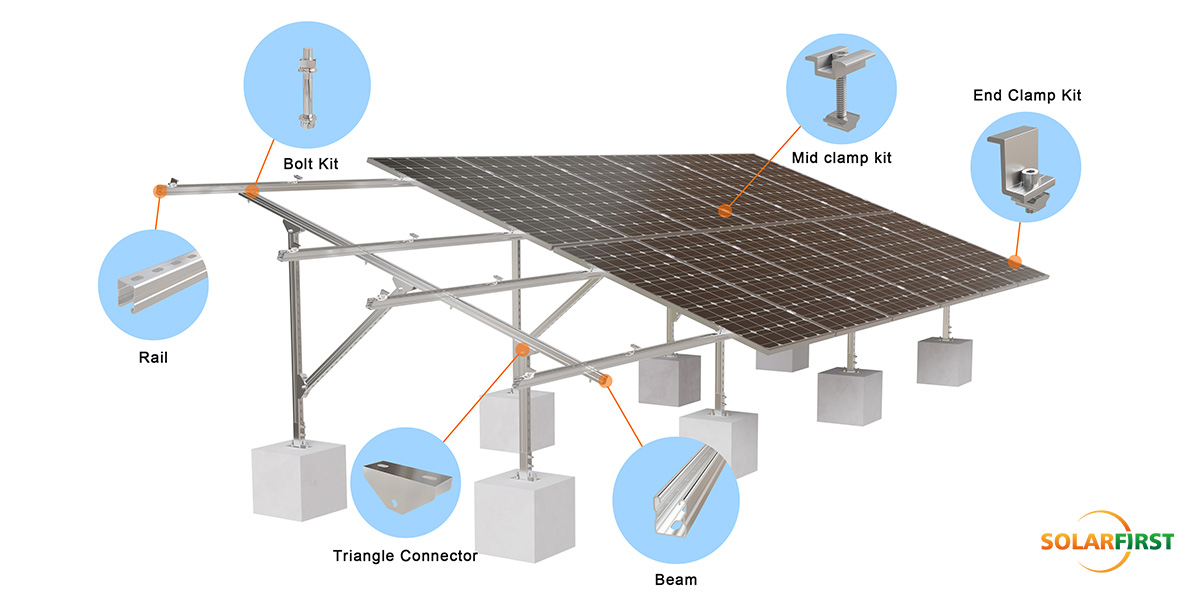

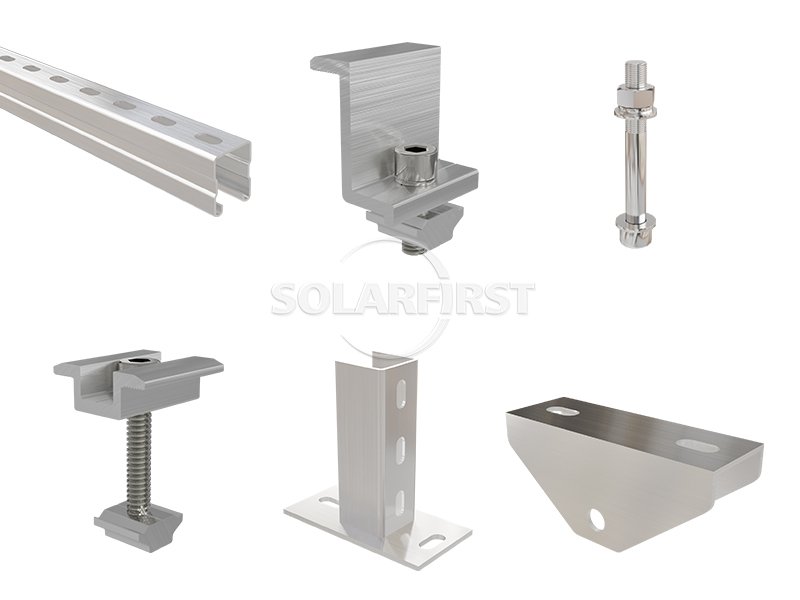

02 Accessory schematic diagram

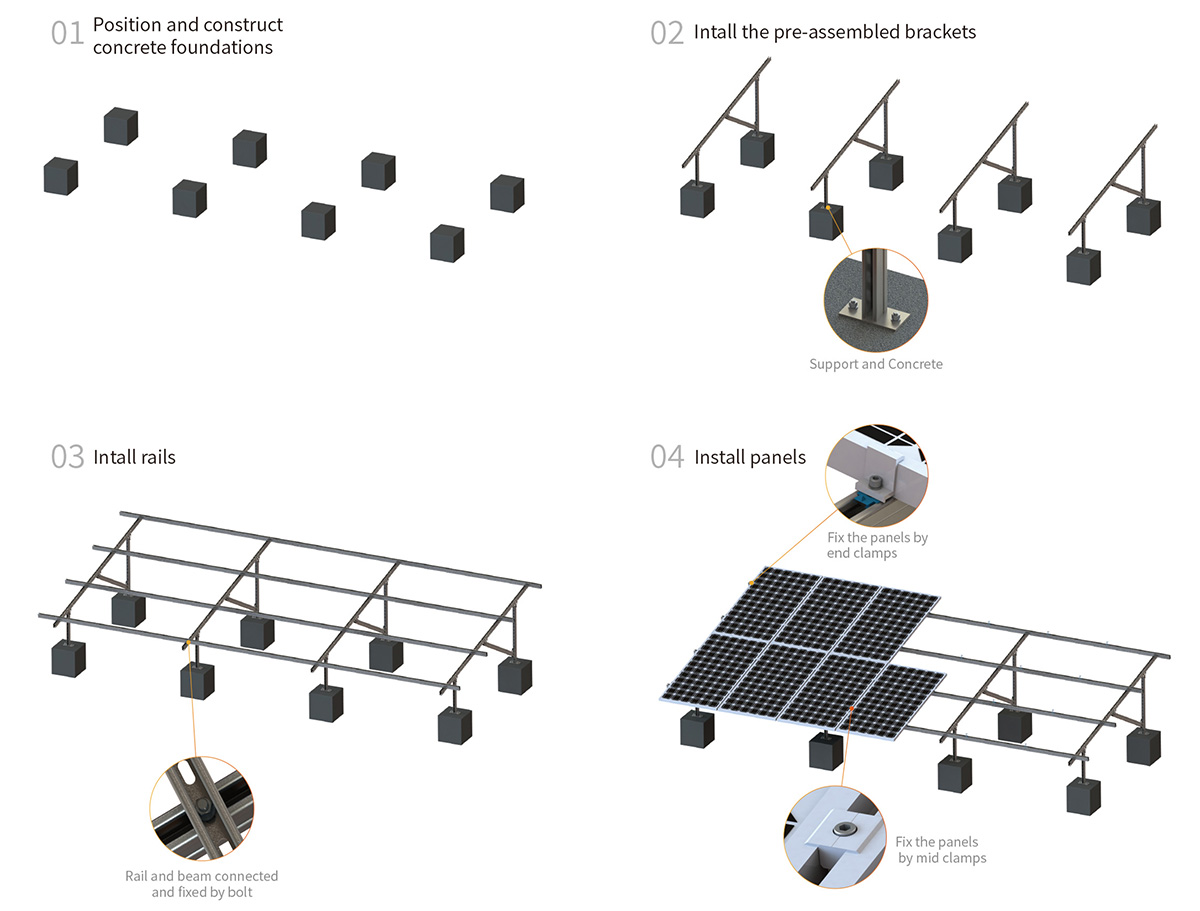

03 Installation Steps

04 Core Engineering Parameters

05 Industry Application Scenarios

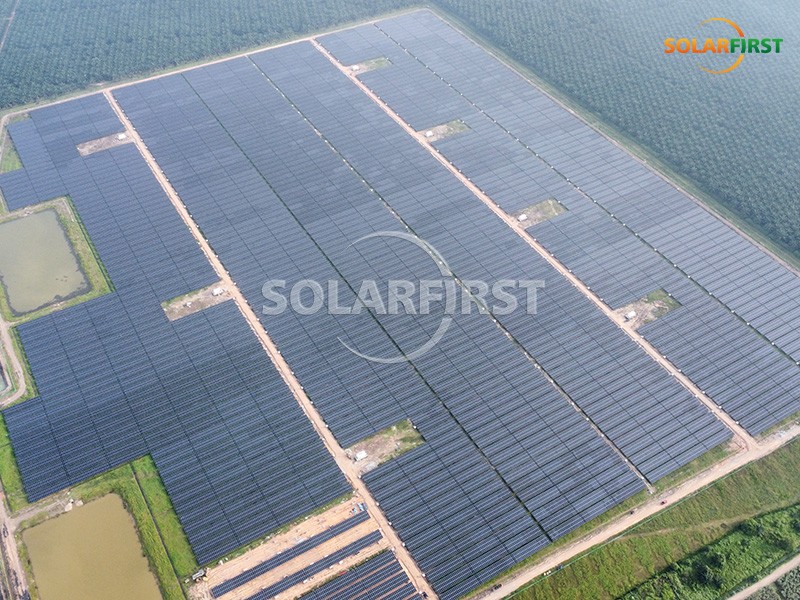

✔ Utility-Scale Solar Farms:

An ideal choice for multi-gigawatt solar bases due to its excellent mechanical properties and rapid installation features.

✔ Complex Terrain Applications:

Whether on hilly terrain, sandy soil, or agrivoltaic projects, its flexible support and foundation adaptability effectively reduce civil works costs and ensure timely grid connection.

✔ High-Corrosion Environments:

In coastal areas, saline-alkali land, or near chemical plants, the high-standard galvanization provides an extra layer of safety and reliability.

06 Professional technical services

▶ Solution design and structural analysis:

Provide customized solution drawing, load calculation reports (including wind load/snow load/seismic force analysis) or assembly drawing.

▶ On-site survey:

Engineers conduct on-site investigations ground conditions with local soil investigation professionals.

▶ Installation training and guidance:

Provide installation videos, installation manuals and on-site installation guidance to ensure safe and complete installation.

07 Advantages

• Superior Structural Mechanical Performance

The innovative inward-curved main beam design, compared to traditional straight C-section steel, more effectively distributes and transfers stress generated by wind and snow loads, significantly reducing structural deformation. This design is particularly suitable for large-span and high-tilt-angle projects, ensuring overall system stability under extreme weather conditions.

• 10+ Year Long-term Anti-corrosion

Constructed from high-quality Q235B or Q355B carbon steel and treated with hot-dip galvanization (coating thickness ≥80μm) , the system offers excellent corrosion resistance. It confidently withstands challenges in high-humidity, high salt-spray environments like coastal or industrial areas, significantly reducing maintenance costs over the entire lifecycle.

• Flexible Custom Design

The system is compatible with all major framed and frameless PV modules and supports both landscape and portrait panel layouts. Through precise engineering analysis, it offers customized tilt angles (5°-45°) and foundation options (ground screws, concrete blocks, driven piles) based on specific project wind speed, snow load, and soil conditions, achieving the optimal configuration for energy yield and structural integrity.

08 Packages & Shipping

International standard packaging; Goods are dispatched from Shanghai, Ningbo, Tianjin, Xiamen and Shenzhen ports in China.

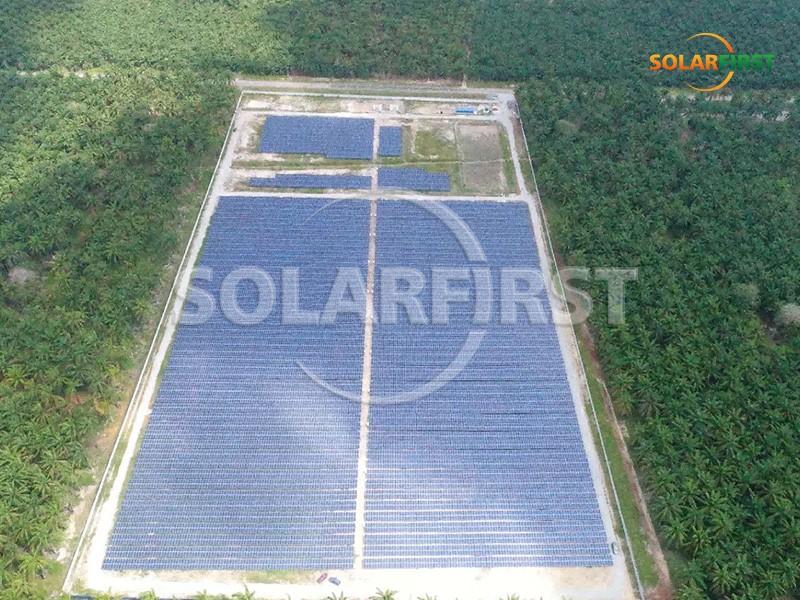

09 Project Case
