Fixed Triangle Solar Concrete Roof Mount

01 Product Description

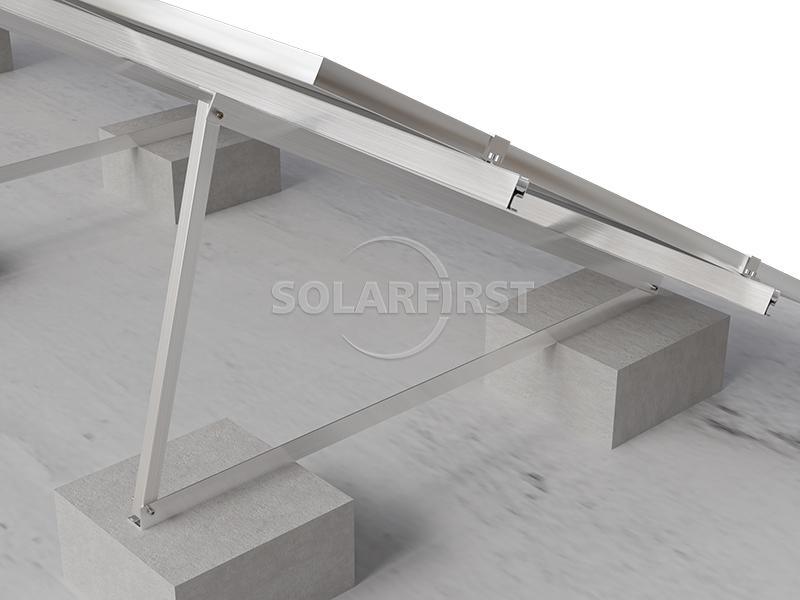

The SF Concrete Roof - Fixed Triangle offers an advanced solar mounting system specifically engineered for concrete flat roof applications. This innovative fixed tilt triangle mounting system features a unique triangular design that ensures structural stability while enabling fast, non-penetrating installation.

As a specialized triangle tilt solar mounting system, it provides reliable 5°, 10°, or 15° tilt options to optimize energy production. The system's triangle brackets and module clamps are factory pre-assembled, significantly reducing installation time and labor requirements. This fixed triangle concrete roof solution maintains full compatibility with both residential and commercial concrete roof structures, while also supporting ground-mounted applications when needed.

Engineered for durability, the system withstands wind loads up to 60 m/s and snow loads of 1.4 kN/m². Compliant with international standards including ASCE7-05 and JIS C8955:2017, it is constructed from corrosion-resistant anodized aluminum AL6005-T5 and stainless steel SUS304 components. Backed by a 10-year warranty, this mounting system provides a cost-effective and reliable solution for concrete roof solar installations.

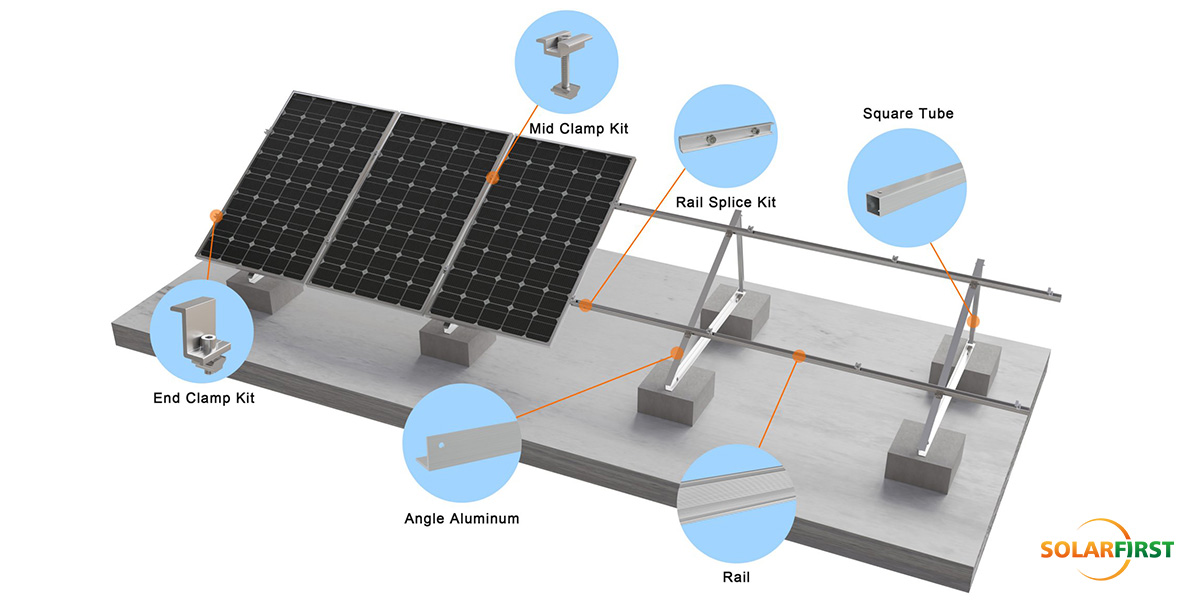

02 Accessory schematic diagram

03 Product Components

04 Core Engineering Parameters

05 Industry Application Scenarios

✔ Residential concrete flat roof

✔ Cement flat roof of commercial buildings

✔ Ground-mounted photovoltaic power station projects

06 Professional technical services

▶ Scheme design and structural analysis:

Provide professional load reports, fixture arrangement simulation and BIM visualization solutions.

▶ On-site exploration support:

Engineers conduct on-site surveys of the roof conditions to confirm installation conditions and risk points.

▶ Installation training and guidance:

Provide standardized installation videos, operation manuals and on-site technical guidance to ensure zero error in construction.

07 Technical verification system

Provide standardized installation videos, operation manuals and on-site technical guidance to ensure zero error in construction.

▶ Extreme environmental testing

• Pass the low-temperature impact at -40℃

• Salt spray corrosion (3,000 + hours)

• Extreme tests such as 60m/s hurricane simulation.

▶ Third-party certification

• We hold wind pressure, snow pressure, seismic resistance and material certification certificates issued by TUV, SGS and other institutions to ensure the compliance of global projects.

08 Packages & Shipping

International standard packaging; Goods are dispatched from Shanghai, Ningbo, Tianjin, Xiamen and Shenzhen ports in China.

09 Project Case
