Structural BIPV Roof Mounting System

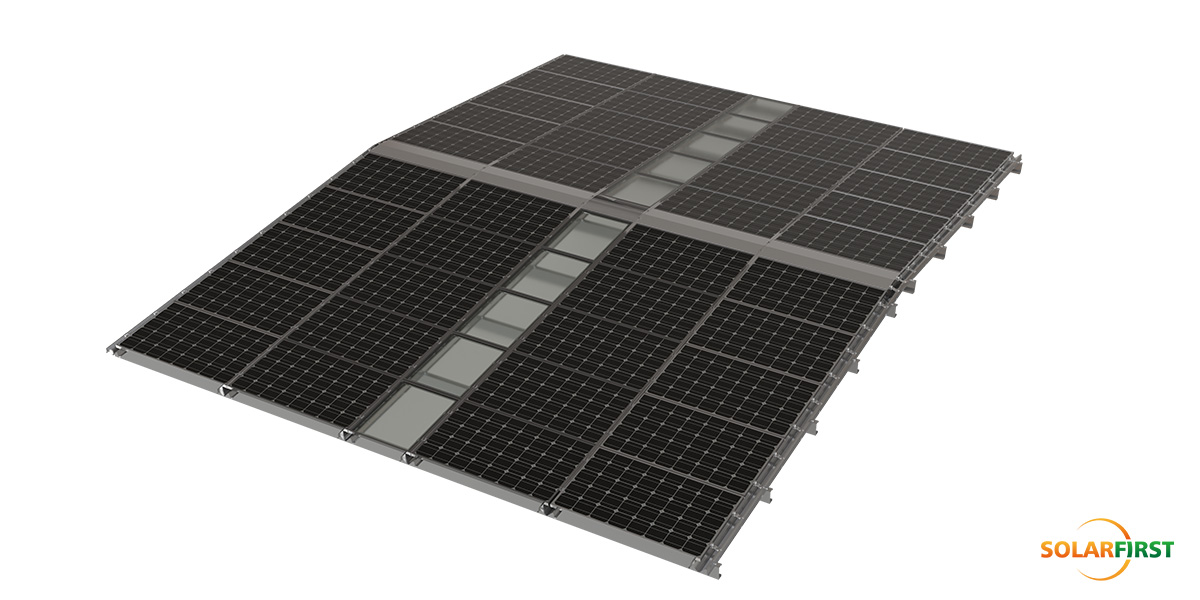

This advanced mounting system is engineered for Building Integrated Photovoltaics (BIPV), where the solar array seamlessly replaces the metal sheeting or tiles and transforms solar panels into the roof itself.
Its innovative waterproof design features an engineered interlocking system that guarantees a 100% watertight seal. Rainfall is efficiently channeled through gaps between panels toward dedicated drainage gutters and downpipes, ensuring no moisture penetrates the underlying space.
The system offers a choice of high-performance materials, including aluminum alloy or zinc-aluminum-magnesium coated steel, for longevity and strength. It is further enhanced with functional options: metal anti-slip boards serve as safe maintenance walkways, while transparent panels can be integrated to create natural daylighting skylights.

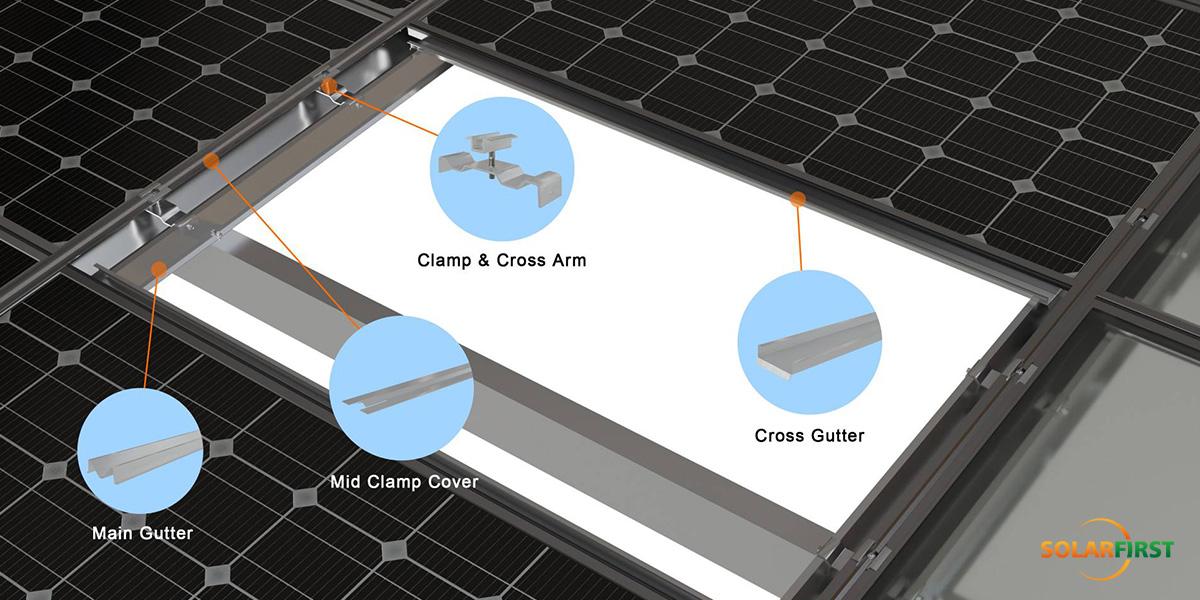

02 Accessory schematic diagram
03 Core Engineering Parameters
| Key indicators | Parameter details |
| Installation | BIPV Roof |
| Wind Load | up to 60m/s |
| Tilt Angle | ≥3° |
| Snow Load | 1.4kn/m² |
| Standards | GB50009-2012, EN1990:2002, ASCE7-05, AS/NZS1170, JIS C8955:2017,GB50017-2017 |
| Material | Anodized Aluminum AL6005-T5, Stainless Steel SUS304, Hot Dip Galvanized Steel |
| Warranty | 10 Years Warranty |
04 Industry Application Scenarios
✔ Large manufacturing plant
✔ Cold chain logistics center
✔ Commercial complex
✔ Transportation hub: Airport
05 Professional technical services
▶ Scheme design and structural analysis:
Provide professional solution drawings, structural analysis reports, installation manuals, or assembly drawings.
▶ On-site survey:
Engineers conduct on-site surveys of the roof conditions to confirm installation conditions and risk points.
▶ Installation training and guidance:
Provide installation videos, installation manuals and on-site technical guidance to ensure safe and complete installation.
06 Technical verification system
Provide standardized installation videos, operation manuals and on-site technical guidance to ensure zero error in construction.
▶ Extreme environmental testing
• Pass the low-temperature impact at -40℃
• Salt spray corrosion (3,000 + hours)
• Extreme tests such as 60m/s hurricane simulation.
▶ Third-party certification
• We hold wind pressure, snow pressure, seismic resistance and material certification certificates issued by TUV, SGS and other institutions to ensure the compliance of global projects.
07 Packages & Shipping
International standard packaging; Goods are dispatched from Shanghai, Ningbo, Tianjin, Xiamen and Shenzhen ports in China.
08 Project Case

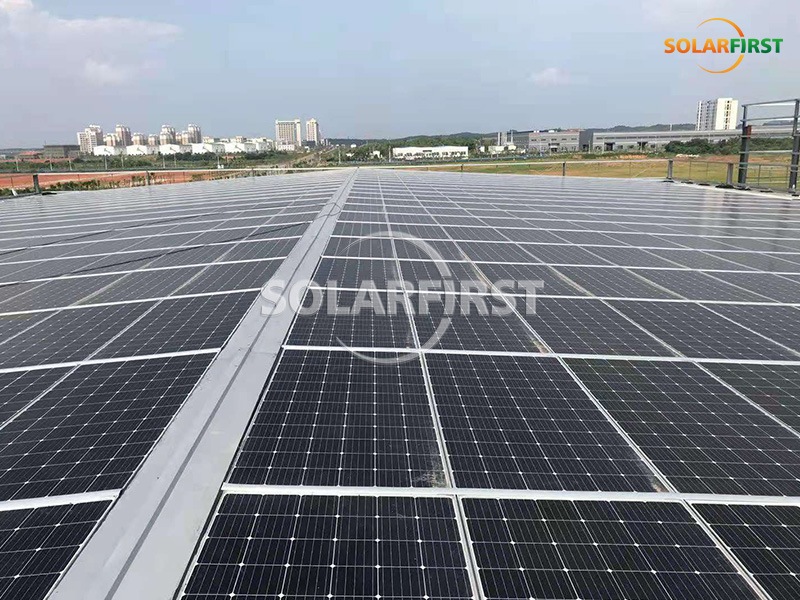

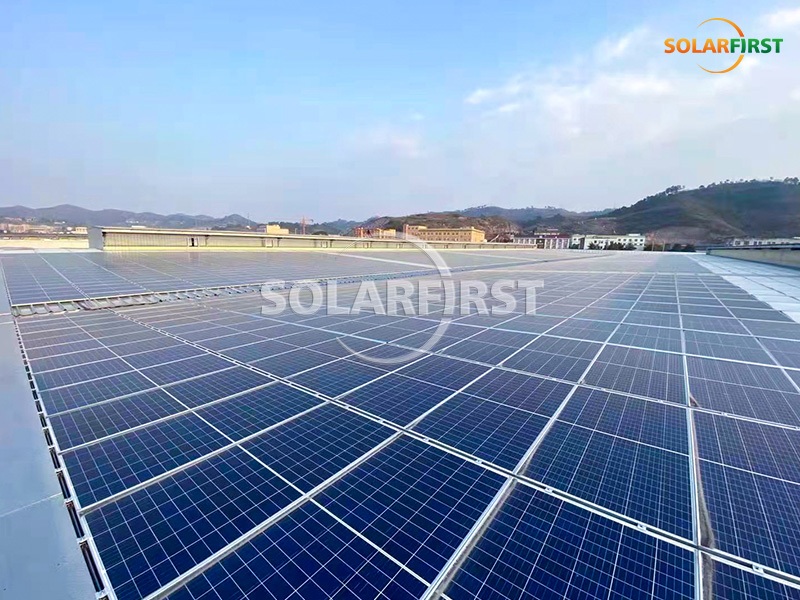

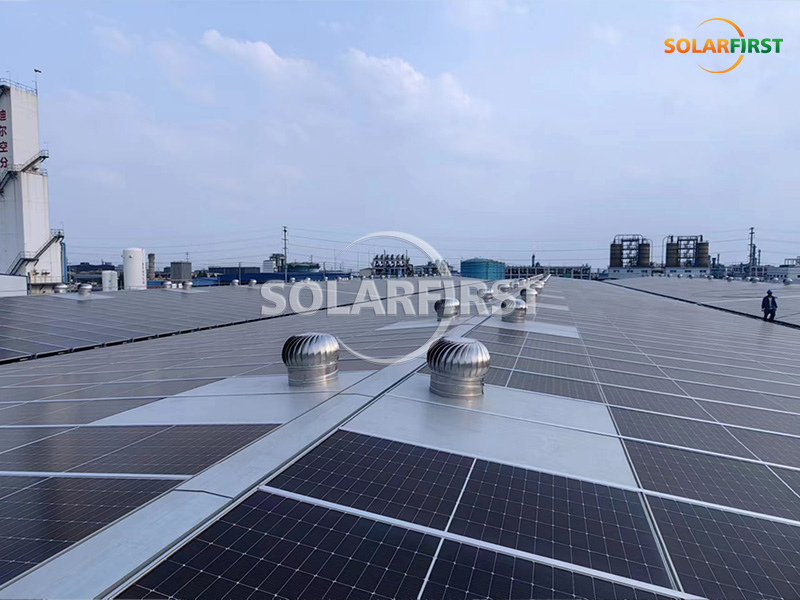

The building-integrated photovoltaic (BIPV) roof system revolutionizes the traditional roof construction model, using solar modules as the core building envelope structure and directly replacing metal roof panels or tiles. The system adopts an innovative stepped drainage design. Through precise water guide channels and eaves water collection systems, it achieves 100% zero leakage guarantee (certified by EN 13830 dynamic water tightness), completely eliminating the risk of rainwater intrusion.
