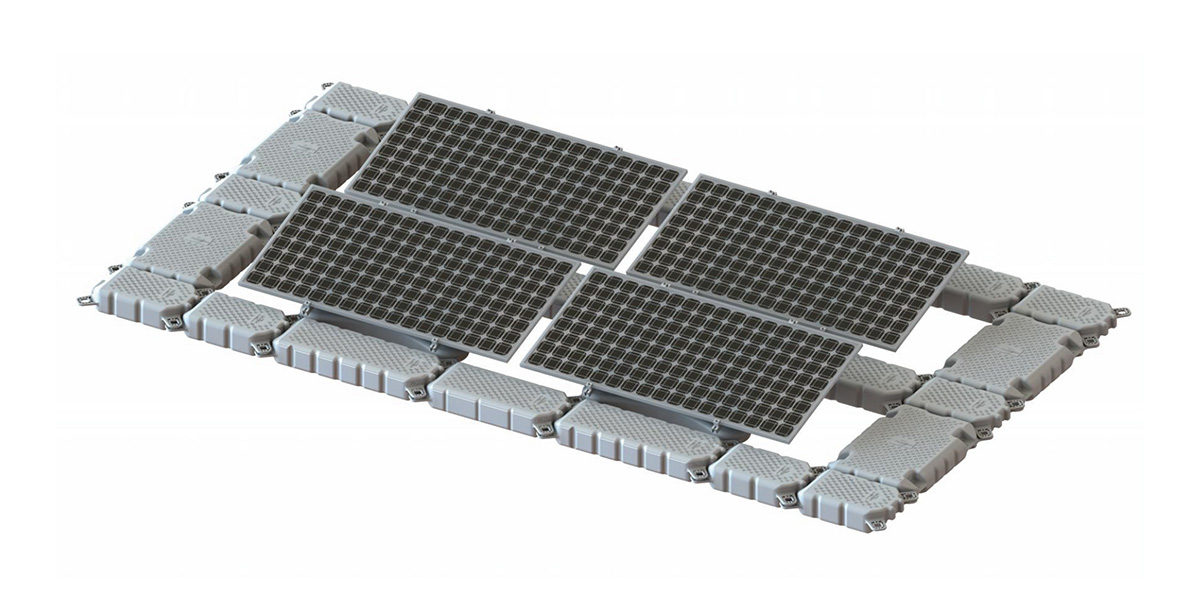

SF Floating Solar Mounting System (TGW01)

01 Product Description

Precision-Engineered Floating PV Platform

System Features:

• Integrated Maintenance Walkways: Each module row is interconnected by dedicated floating pontoons, creating secure servicing pathways for efficient operational upkeep.

• Advanced Thermal Management: Strategically spaced rows facilitate optimal airflow, effectively dissipating heat to maintain peak module performance during high-temperature conditions.

• Optimized Wind Resistance: The spaced array configuration significantly reduces wind load impact, enhancing system resilience in challenging weather environments.

• Model Recommendation: The TGW01 configuration delivers exceptional performance in expansive water areas with significant wind exposure and elevated climate temperatures.

Strategic Advantages:

As terrestrial construction sites grow increasingly scarce, our aquatic PV solutions present a sophisticated alternative to conventional ground-mounted and rooftop installations. Solar First's floating systems deliver comprehensive benefits through advanced engineering:

• Land conservation with minimal aquatic ecosystem impact

• Evaporation reduction and algae growth suppression through surface coverage

• Simplified maintenance with natural dust reduction and easy access cleaning

• Lifecycle cost efficiency through durable, purpose-driven design

• Fully recyclable components supporting circular economy principles

• Environmental safety certification for protected water source applications

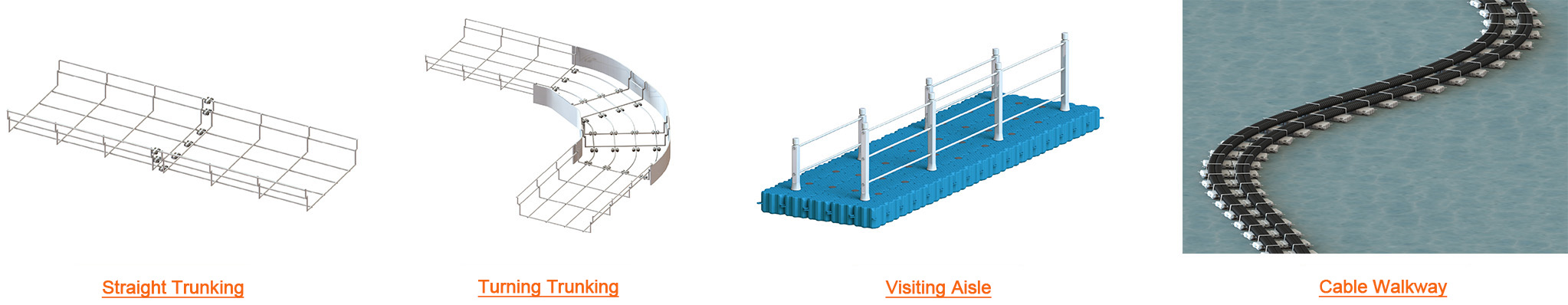

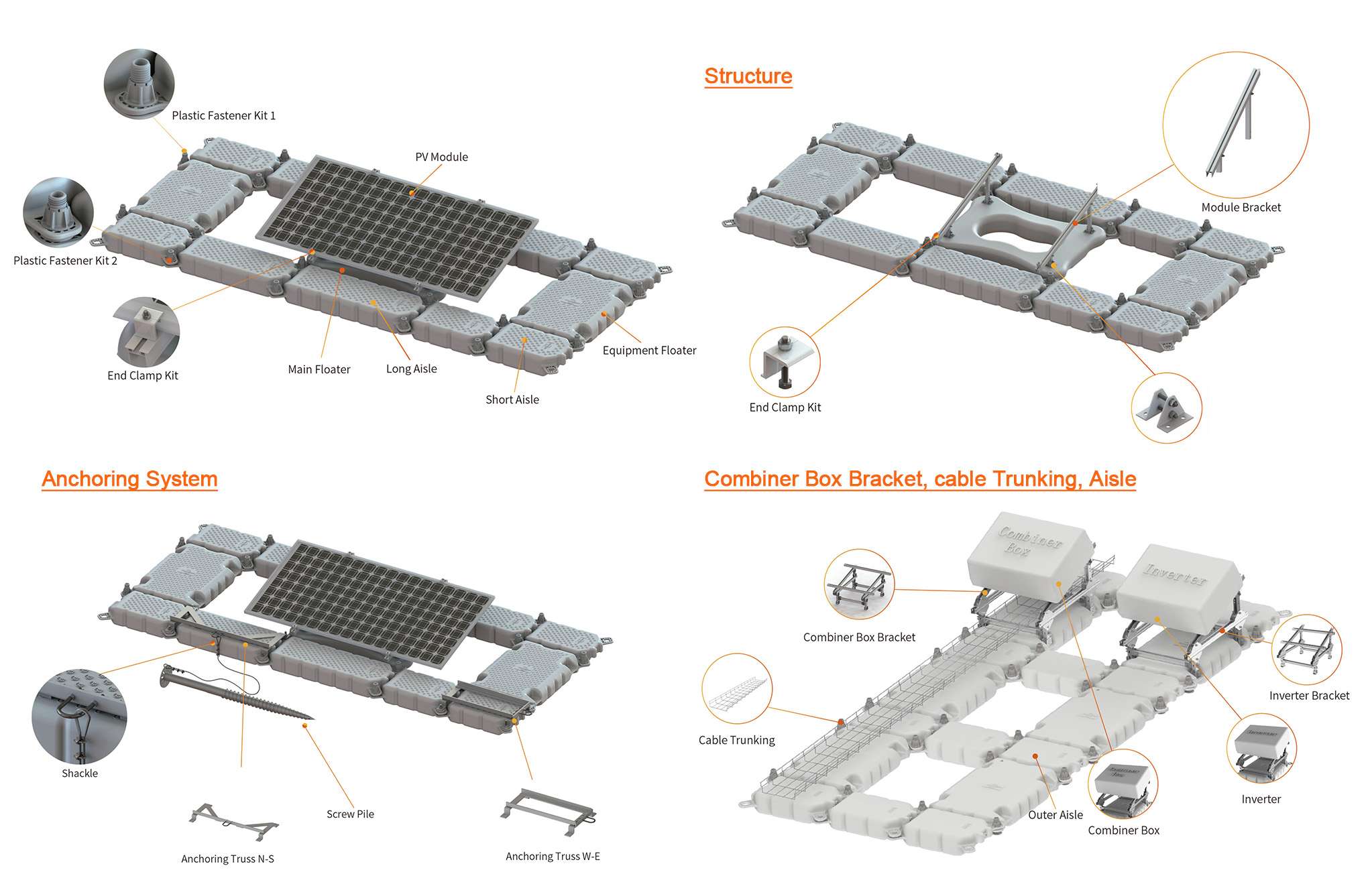

02 Accessory schematic diagram

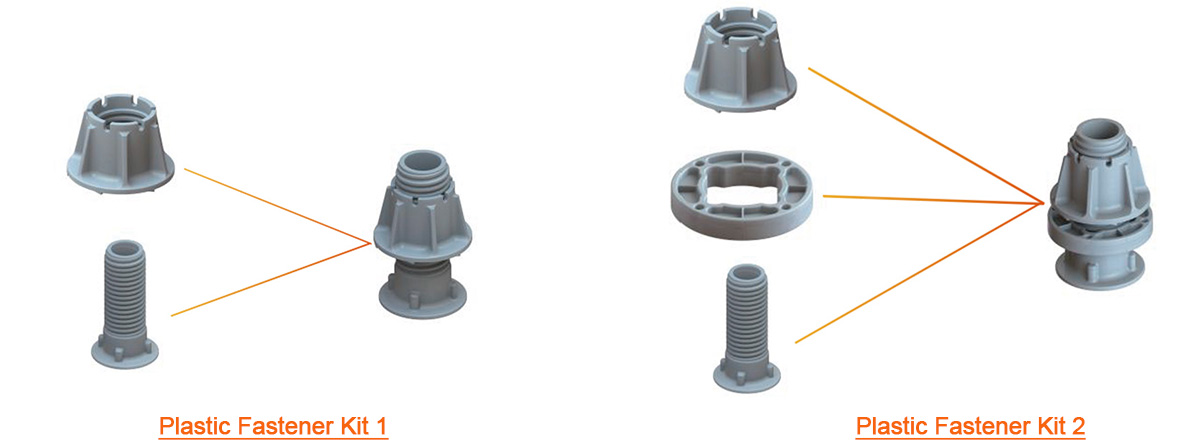

03 Product Components

04 Core Engineering Parameters

05 Industry Application Scenarios

✔ Fishery photovoltaic complementary project: Fish ponds and aquaculture lakes, forming a three-dimensional model of "upper layer power generation and lower layer aquaculture"

✔ Offshore and Marine ranches: Anti-corrosion floating bodies must be adopted

✔ Industrial water areas: industrial wastewater ponds, sedimentation areas in mining areas

✔ Reservoirs: Mainly floating type (such as the deep water area in the middle of the reservoir) or pile foundation fixed type (shallow water area near the shore)

✔ Urban ecological landscapes: rivers, landscape lakes, and regulating tanks of sewage treatment plants

06 Professional technical services

▶ Solution design and structural analysis:

Provide layout drawing, customized solution drawing, load calculation reports (including wind load, snow load, buoyancy analysis) or assembly drawing.

▶ On-site survey:

Engineers conduct on-site survey water and soil conditions with local hydrologic and soil investigation professionals.

▶ Installation training and guidance:

Provide installation videos, installation manuals and on-site installation training to ensure safe and complete installation.

07 Technical verification system

Provide standardized installation videos, operation manuals and on-site technical guidance to ensure zero error in construction.

▶ Extreme environmental testing

• Pass the low-temperature impact at -40℃

• Salt spray corrosion (3,000 + hours)

• Extreme tests such as 60m/s hurricane simulation.

▶ Third-party certification

• We hold wind pressure, snow pressure, seismic resistance and material certification certificates issued by TUV, SGS and other institutions to ensure the compliance of global projects.

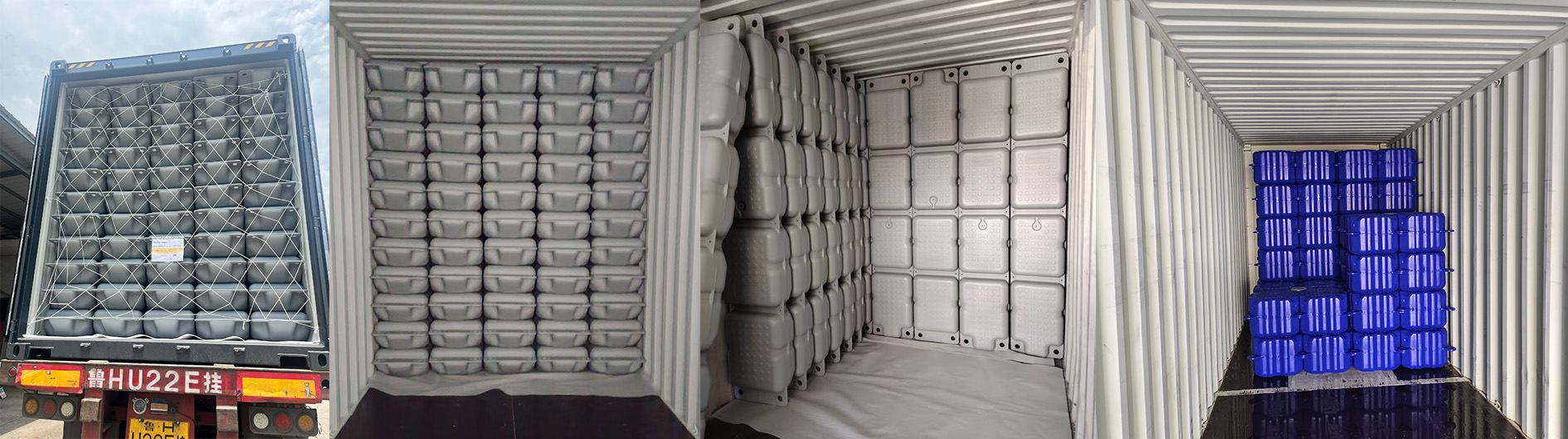

08 Packages & Shipping

International standard packaging; Goods are dispatched from Shanghai, Ningbo, Tianjin, Xiamen and Shenzhen ports in China.

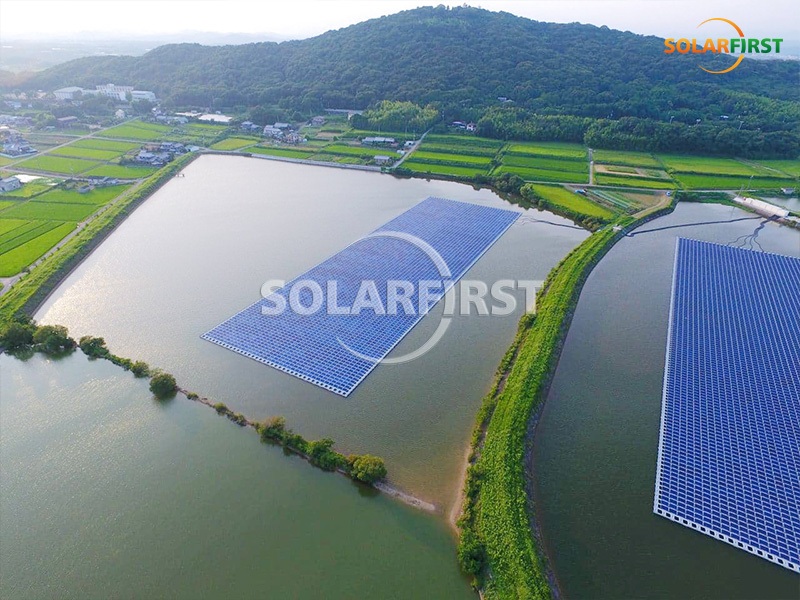

09 Project Case
