SF Single Layer Flexible Mounting Structure

01 Product Description

The SF single-layer cable flexible support system adopts a pre-tensioned cable structure to achieve a large-span layout of 20 meters in a single span, creating a 6-meter high clearance to meet the combined needs of agriculture and breeding. Compared with fixed supports, it saves 20% of the foundation usage and 30% of the steel. It is perfectly adapted to complex terrains such as mountains, deserts and ponds, and has passed the national standard GB50017-2017 steel structure certification.

✅ Large-span economic design

• Single span 15-20 meters (half-string component layout)≥6 meters of working spaceThe multi-point drive design enhances the critical wind speed

• 45m/s limit wind speed certification (ASCE 7-10)

✅ High headroom composite utilization

• ≥6 meters of working space
• Support the simultaneous implementation of agricultural planting and livestock breeding

✅ Material cost optimization

• Steel usage is reduced by 30% (about 20 tons per MW for fixed supports)
• Reduction in basic costs (PHC piles/cast-in-place piles)

✅ All-terrain adaptability

• Mountains, hills, deserts, ponds, irregular terrain
• Slope adaptability: Inclination Angle ≤30°

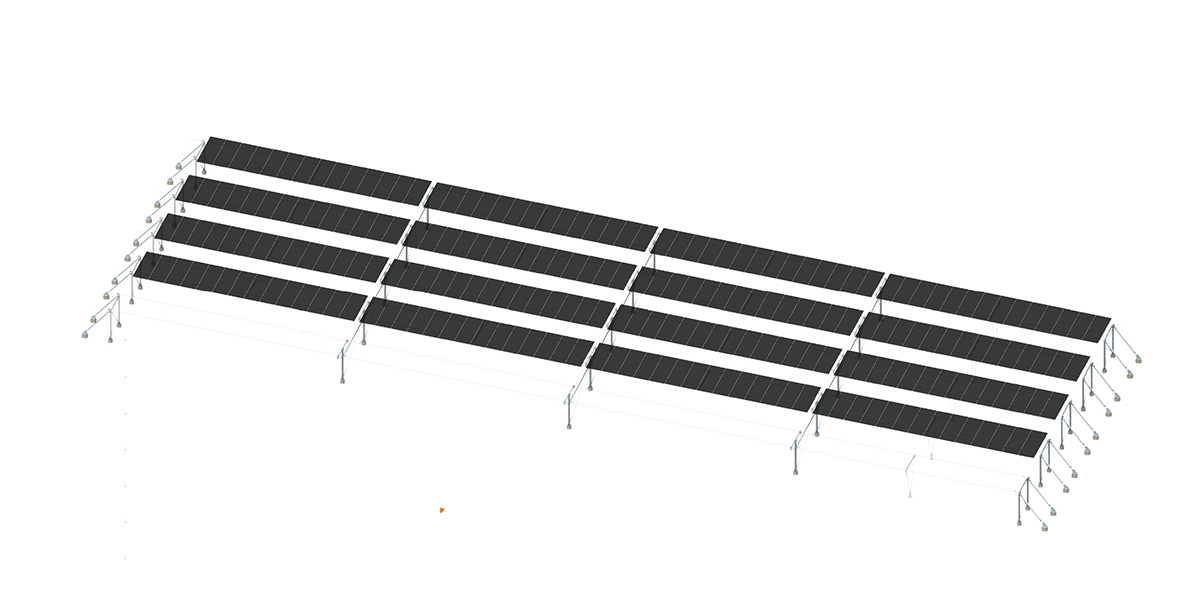

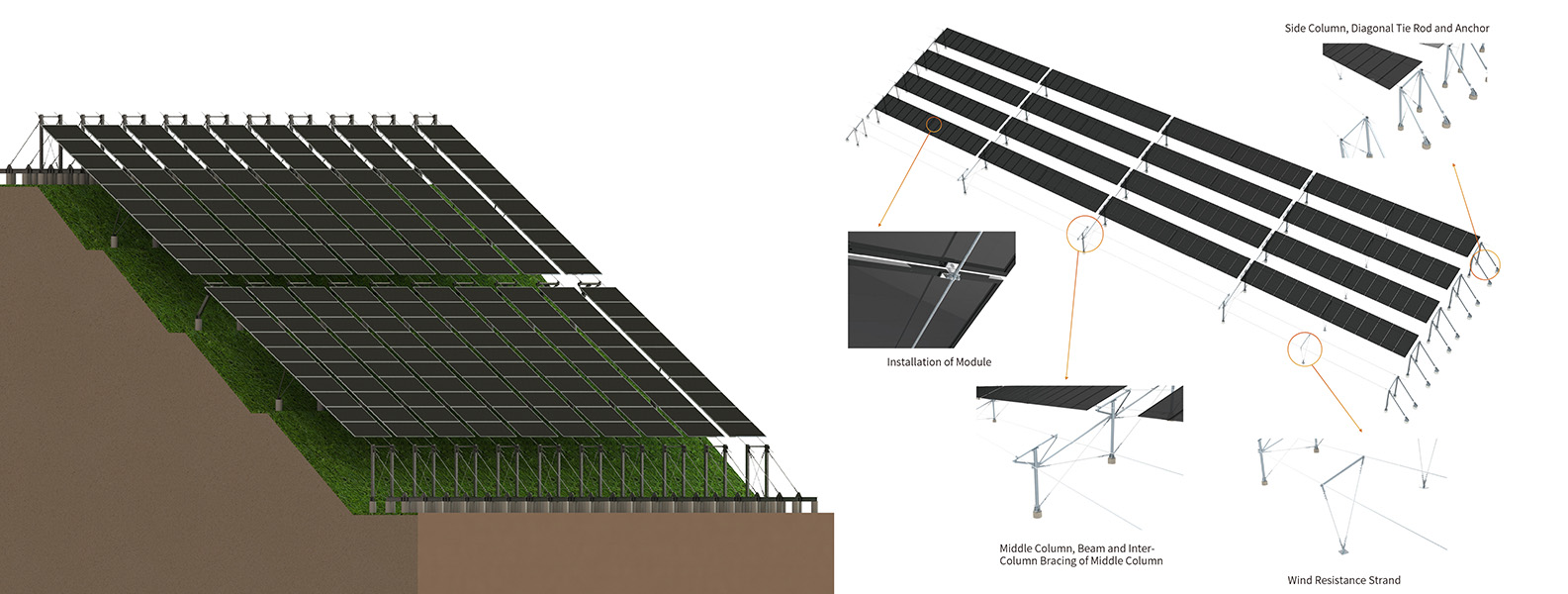

02 Accessory schematic diagram

03 Product Components

04 Core Engineering Parameters

05 Industry Application Scenarios

✔ Reservoir/fishpond surface photovoltaic

✔ Complex slope power station

✔ Mine restoration area

✔ Sewage treatment plant

06 Professional technical services

▶ Scheme design and structural analysis:

Provide customized load calculation reports (including wind load/snow load/seismic force analysis).

▶ On-site exploration support:

Engineers conduct on-site investigations of geological conditions (soil bearing capacity/slope/corrosive environment).

▶ Installation training and guidance:

Provide standardized installation videos, operation manuals and on-site technical guidance to ensure zero error in construction.

07 Technical verification system

Provide standardized installation videos, operation manuals and on-site technical guidance to ensure zero error in construction.

07 Technical verification system

▶ Extreme environmental testing

• Pass the low-temperature impact at -40℃

• Salt spray corrosion (3,000 + hours)

• Extreme tests such as 60m/s hurricane simulation.

▶ Third-party certification

• We hold wind pressure, snow pressure, seismic resistance and material certification certificates issued by TUV, SGS and other institutions to ensure the compliance of global projects.

08 Packages & Shipping

International standard packaging; Goods are dispatched from Shanghai, Ningbo, Tianjin, Xiamen and Shenzhen ports in China.

09 Project Case
