01 Product Description
The wind-solar hybrid solar street lamp system integrates dual energy inputs of photovoltaic panels and wind turbines, achieving three intelligent charging modes:
Intelligent lighting system
• Power: 40-150W (White light 4000-5500K)
• Single-lamp control: Real-time monitoring of voltage, current and power
• Remote dimming: Supports 0-10V dimming interface
• Fault alarm: Automatically report power failure anomalies
Security monitoring system
• 2 million /4 million high-definition cloud billiards machine
• 1080P@60fps high frame rate output
• 360° horizontal rotation + vertical adjustment
Intelligent interaction module
• 5G micro base station
• WIFI hotspot
• LED information screen
• Broadcasting system: 20-40W IP65 waterproof
• One-click alarm: Supports TCP/UDP protocol transmission
02 Accessory schematic diagram
03 Core Engineering Parameters
| Smart Street Light Specifications | ||||
| Light pole | The pole height is 4~13 meters, material: high-quality steel Q235; process: hot dip galvanized inside and outside, surface polyester powder coating; protection level: IP65 | |||
| LED lights | Power: 40W~150W; working voltage: AC220V/50Hz; color temperature: white light 4000~5500K; protection level: IP67 | |||
| Security camera | 2/4 million outdoor high-speed PTZ ball machine; support 1080p@60fps, 960p@60fos, 720p@60fos high frame rate output; support 360° horizontal rotation, vertical direction -15°-90°; lightning protection, anti-surge; water protection grade: IP66 |
|||
| Digital broadcasting | Power: 20W~40W; protection level: IP65 | |||
| One-button alarm | Support RJ45 interface/UDP/TCP/RTP protocol; audio sampling: 8kHz~441kHz | |||
| LED information display | Outdoor display screen; size: 480*960/512*1024/640*1280mm (optional); pixel density: 128*256pix; brightness level: ≥5000cd/m; refresh rate: >1920Hz; RJ45 network interface; working voltage : AC220V/50Hz; water protection grade: IP65 | |||
| Environmental monitoring | accuracy ±0.1ugPM2.5/PM10 particle range: 0.3~1.0/1.0~2.5/2.5-10um; measurement range: 0~999ug/m³;Carbon dioxide; effective range: 3000-5000ppm, accuracy: ±(50ppm+5%Fs); resolution: 1ppm Noise: 30~110dB, ±3%Fs | |||
| Weather monitoring | Air temperature: -20℃~90℃; resolution: 0.1℃ Atmospheric pressure: measuring range 1~110kPa Light intensity: 0~200000Lux; resolution: 1Lux Wind speed: starting wind 0.4~0.8m/s, resolution 0.1m/s; wind direction: 360°, dynamic speed ≤0.5m/s Wind direction: range: 0-360°, accuracy: earth 3°, resolution: 1°, starting wind speed: ≤0.5m/s |
|||
| LED single lamp power saving control | Single lamp monitoring: voltage AC0~500V, current AC0~80A, output control: AC200V/10A; voltage, current, power, power factor collection; dimming interface: DC0~10V; light-off failure alarm | |||
| Charging pile | AC charging AC220V/50Hz; power 7kW; pay by credit card or WeChat payment | |||
| Network equipment | 5G micro base station, antenna: 64 antenna interface; channel width: 20/40/50/60/80/100MHz Wireless AP (WiFi): Coverage from 100 meters to 300 meters, transmission standard: 802.11a, 802., dual-band concurrent 2.4G, built-in firewall | |||
| Mobile client | Mobile APP | |||
| Power cord accessories | National standard rubber insulated cable three-core YZ3mm*2.5mm square power cord; 3P/63 circuit breaker, etc | |||
04 Industry Application Scenarios
✔ High-tech Park
✔ Tourist attractions
✔ Commercial district
✔ Urban Park
✔ Transportation hub
✔ Smart Community
05 Professional technical services
▶ Solution design and structural analysis:
Provide customized solution drawing, load calculation reports (including wind load/snow load/seismic force analysis) or assembly drawing.
▶ On-site survey:
Engineers conduct on-site investigations ground conditions with local soil investigation professionals.
▶ Installation training and guidance:
Provide installation videos, installation manuals and on-site installation guidance to ensure safe and complete installation.
06 Technical verification system
Provide standardized installation videos, operation manuals and on-site technical guidance to ensure zero error in construction.
▶ Extreme environmental testing
• Pass the low-temperature impact at -40℃
• Salt spray corrosion (3,000 + hours)
• Extreme tests such as 60m/s hurricane simulation.
▶ Third-party certification
• We hold wind pressure, snow pressure, seismic resistance and material certification certificates issued by TUV, SGS and other institutions to ensure the compliance of global projects.
07 Packages & Shipping
International standard packaging; Goods are dispatched from Shanghai, Ningbo, Tianjin, Xiamen and Shenzhen ports in China.

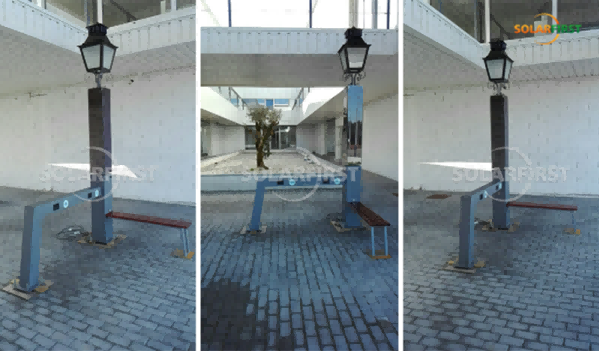

08 Project Case
