Symmetrical Ballasted Solar Concrete Roof Mount

01 Product Description

The SF Symmetrical Ballasted Roof Mount offers an innovative ballasted solar mounting for flat roofs system specifically designed for concrete roof applications. This advanced symmetrical ballasted roof mounting solution features a unique design that eliminates the need for wind deflectors, significantly reducing both structural costs and required ballast weight.

As an ideal solar panel installation on concrete roof solution, this non-penetrating system provides exceptional wind resistance through its low-profile ballasted design. The symmetrical configuration enhances structural strength while increasing installation capacity, supporting both east-west and north-south orientations with 5°, 10°, or 15° tilt options. The simple, efficient design ensures quick installation and maintains compatibility with various roof configurations.

Engineered to withstand wind loads up to 60 m/s and snow loads of 1.4 kN/m², the system meets international standards including ASCE7-05 and JIS C8955:2017. Constructed from corrosion-resistant anodized aluminum AL6005-T5 and stainless steel SUS304 components, this durable ballast roof mounting system is backed by a comprehensive 10-year warranty, ensuring long-term reliability and performance for concrete roof solar installations.

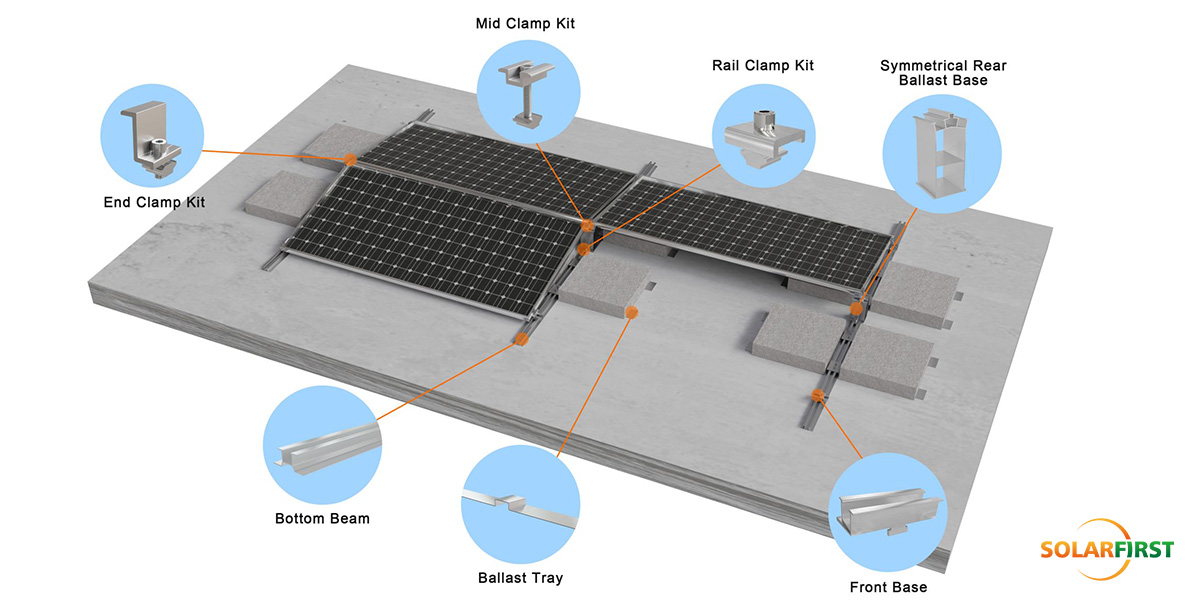

02 Accessory schematic diagram

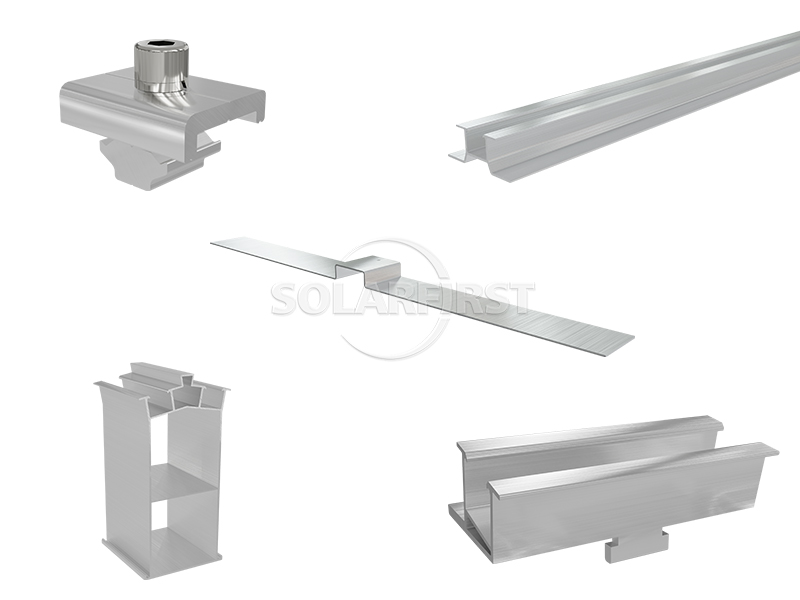

03 Product Components

04 Core Engineering Parameters

05 Industry Application Scenarios

✔ Concrete flat roof for commercial buildings

✔ Cement flat roof of industrial plant

✔ Flat roof structure for public facilities

06 Professional technical services

▶ Scheme design and structural analysis:

Provide professional load reports, fixture arrangement simulation and BIM visualization solutions.

▶ On-site exploration support:

Engineers conduct on-site surveys of the roof conditions to confirm installation conditions and risk points.

▶ Installation training and guidance:

Provide standardized installation videos, operation manuals and on-site technical guidance to ensure zero error in construction.

07 Technical verification system

Provide standardized installation videos, operation manuals and on-site technical guidance to ensure zero error in construction.

07 Technical verification system

▶ Extreme environmental testing

• Pass the low-temperature impact at -40℃

• Salt spray corrosion (3,000 + hours)

• Extreme tests such as 60m/s hurricane simulation.

▶ Third-party certification

• We hold wind pressure, snow pressure, seismic resistance and material certification certificates issued by TUV, SGS and other institutions to ensure the compliance of global projects.

08 Packages & Shipping

International standard packaging; Goods are dispatched from Shanghai, Ningbo, Tianjin, Xiamen and Shenzhen ports in China.

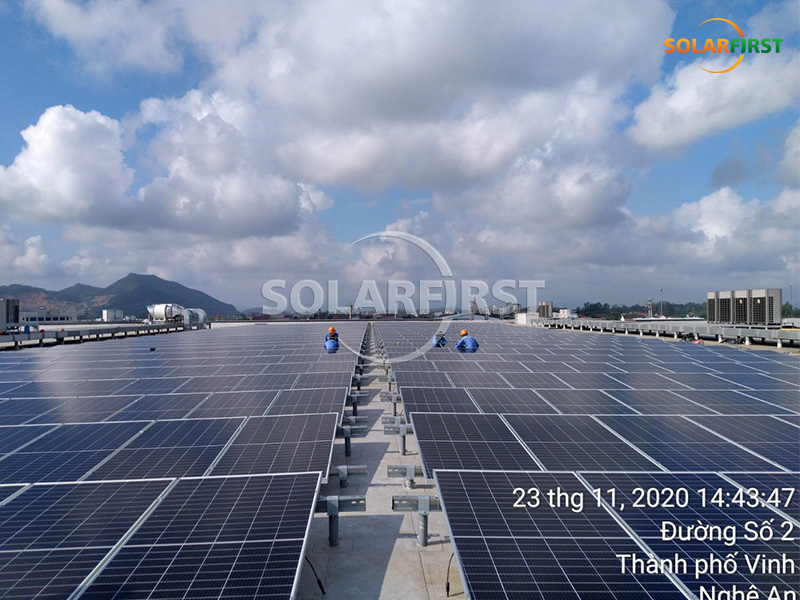

09 Project Case
