Tilt Series Tilted Single Axis Solar Tracker System

01 Product Description

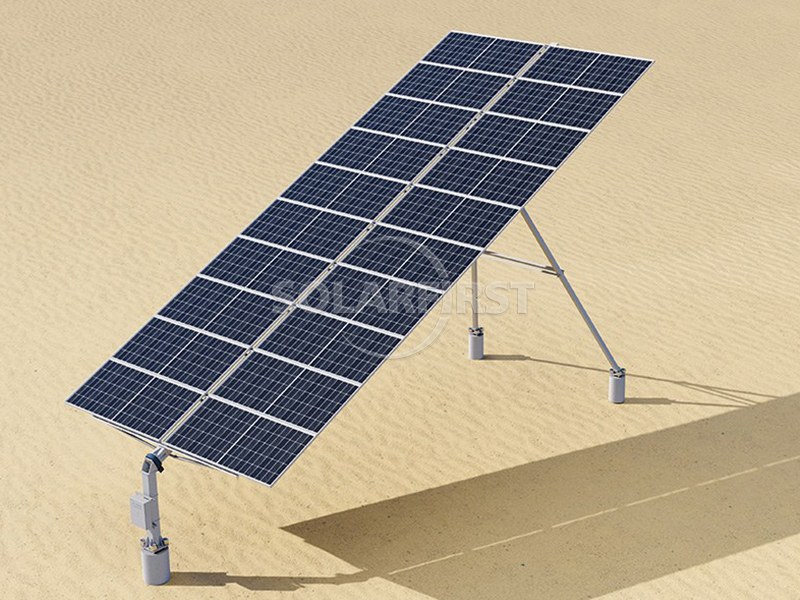

The Tilt Series Tilted Single Axis Solar Tracker is designed for large-scale solar power plants, particularly in regions at higher latitudes, offering an optimal balance of energy yield and structural robustness. This system features a tilted single-axis design that rotates between horizontal and vertical planes, maximizing sun exposure while maintaining a low wind profile and ground clearance for enhanced safety and space efficiency.

Built with a simple yet highly stable triangular support structure, the tracker ensures reliable performance even under challenging environmental conditions. Its intelligent tracking system automatically adjusts the tilt angle (up to ±45° azimuth and 5–25° inclination) in response to real-time terrain and weather data, significantly increasing energy output compared to fixed-tilt systems. Each tracker supports up to 20 solar modules and is compatible with 1000V/1500V system configurations.

Constructed from hot-dip galvanized or Zn-Al-Mg coated steel with a mean coating thickness ≥80μm, the system delivers exceptional corrosion resistance and long-term durability. It accommodates multiple foundation types—PHC, cast-in-place, or steel pile—enabling flexible deployment across diverse sites. With a customizable design that withstands wind speeds up to 40 m/s, this tracker combines smart functionality with rugged reliability for utility and commercial solar projects.

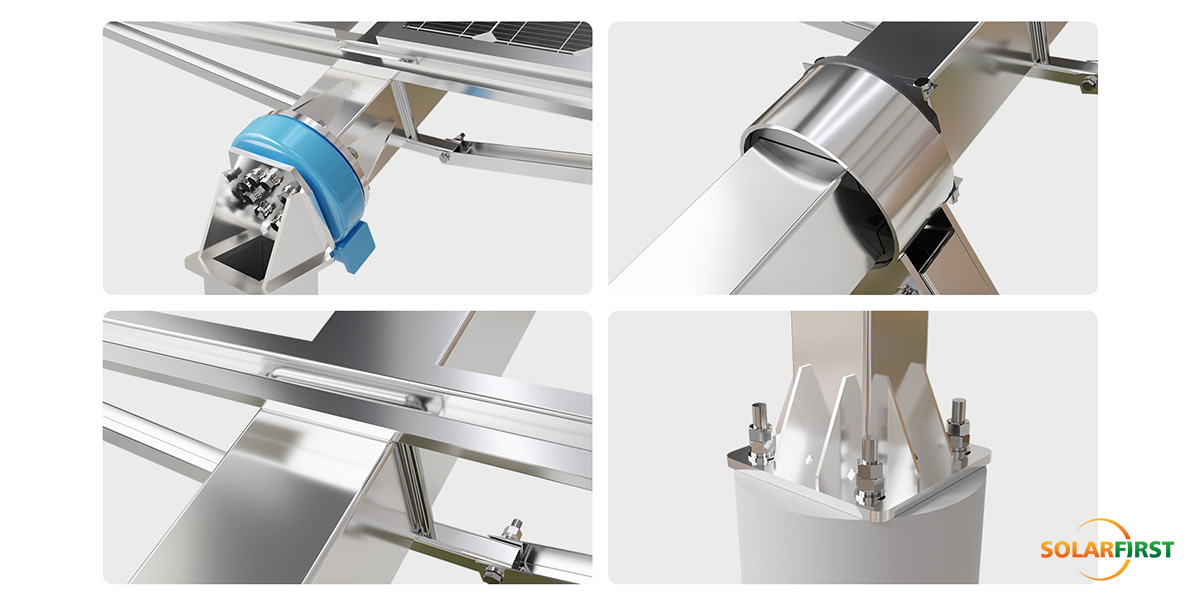

02 Accessory schematic diagram

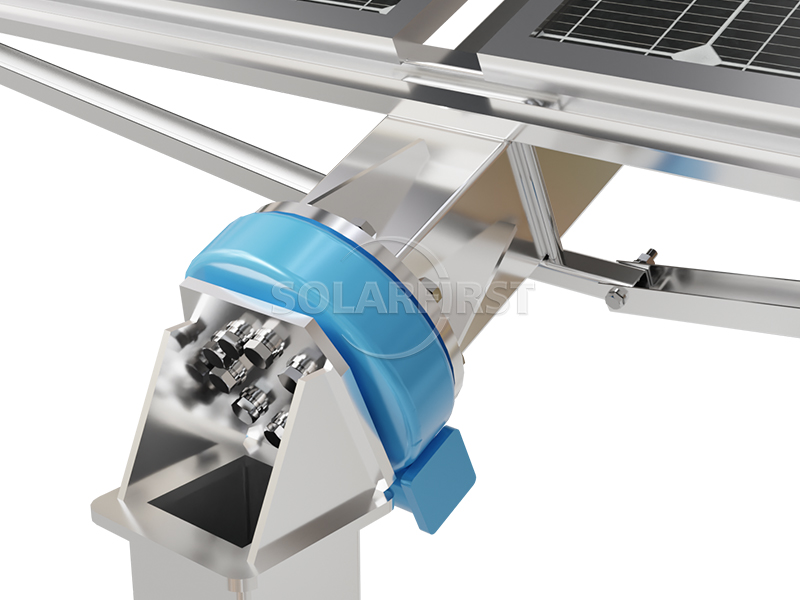

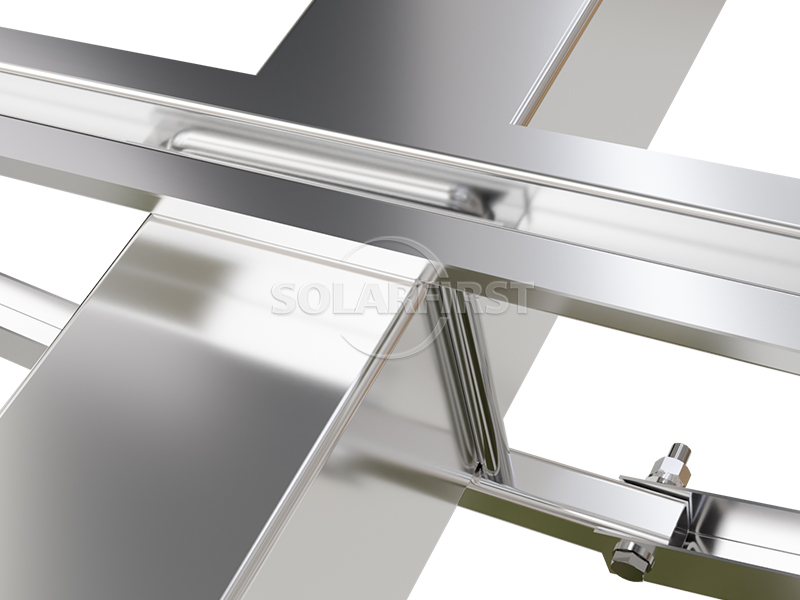

03 Product Components



04 Core Engineering Parameters

05 Industry Application Scenarios

✔ Deserts and marginal lands: Applicable systems: Single-axis and dual-axis tracking systems

✔ Slopes and undulating terrain: Applicable systems: Inclined single-axis/adaptive dual-axis systems

✔ Rooftop photovoltaic and community power supply: Applicable systems: Light-duty flat single-axle/small-sized dual-axle systems

06 Professional technical services

▶ Solution design and structural analysis:

Provide customized solution drawing, load calculation reports (including wind load/snow load/seismic force analysis) or assembly drawing.

▶ On-site survey:

Engineers conduct on-site investigations ground conditions with local soil investigation professionals.

▶ Installation training and guidance:

Provide installation videos, installation manuals and on-site installation guidance to ensure safe and complete installation.

07 Technical verification system

Provide standardized installation videos, operation manuals and on-site technical guidance to ensure zero error in construction.

07 Technical verification system

▶ Extreme environmental testing

• Pass the low-temperature impact at -40℃

• Salt spray corrosion (3,000 + hours)

• Extreme tests such as 60m/s hurricane simulation.

▶ Third-party certification

• We hold wind pressure, snow pressure, seismic resistance and material certification certificates issued by TUV, SGS and other institutions to ensure the compliance of global projects.

08 Packages & Shipping

International standard packaging; Goods are dispatched from Shanghai, Ningbo, Tianjin, Xiamen and Shenzhen ports in China.

09 Project Case
