Designed specifically for industrial and commercial trapezoidal color steel tile roof photovoltaic systems with extremely high requirements for structural strength. This fixture adopts a penetrating fixation scheme. It integrates the fixture, color steel tile and roof purlin into one through high-strength fasteners, achieving the most direct and secure load transmission. It is a reliable choice for dealing with extreme wind load environments.
Color :
Silver Anodized / Customizable Black CoatingMaterial :
High-strength Aluminum Alloy (AL6005-T5) / Stainless Steel 304 (SUS304)Certification :
CE / ISO 9001 / SGS Report (Supporting customized load test reports)01 Product Description

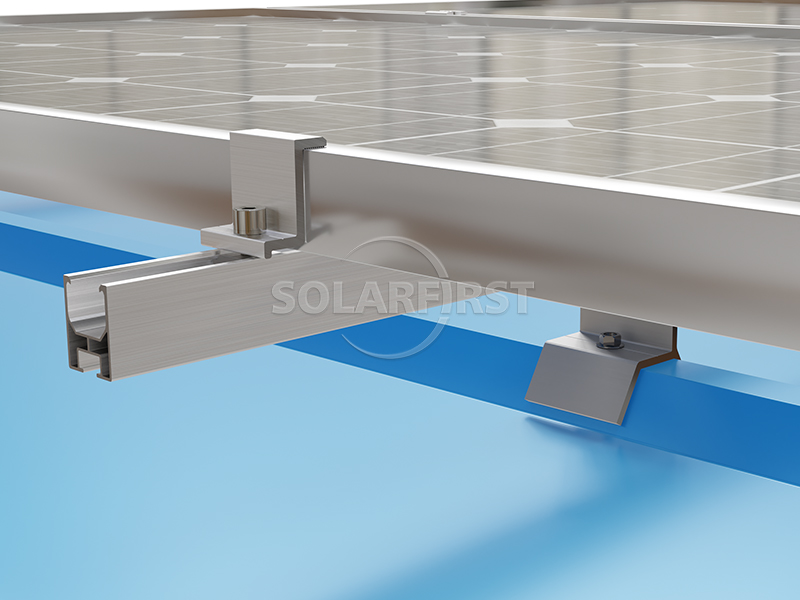

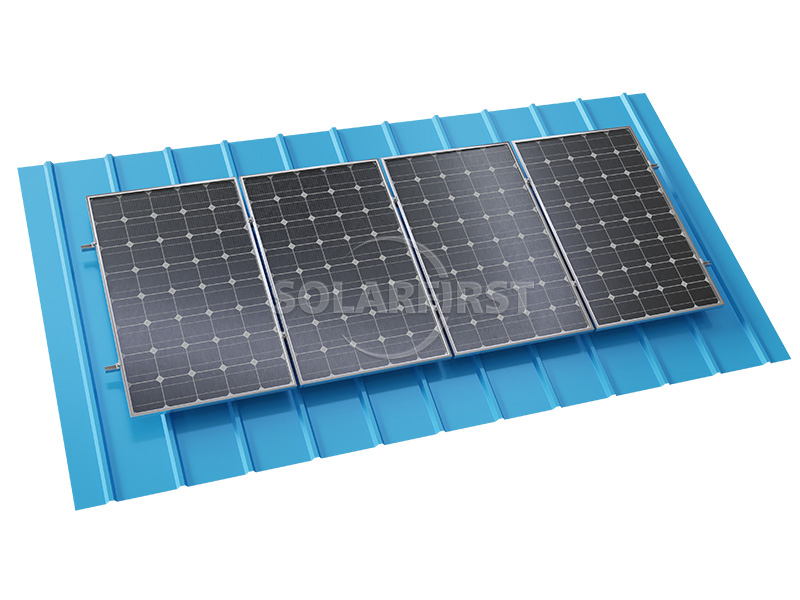

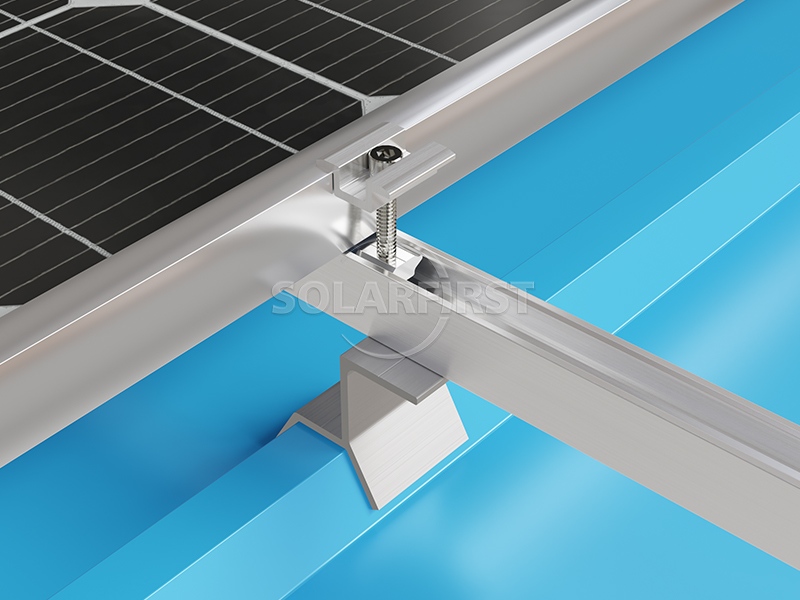

Designed for trapezoidal tin roofs, this solution enables effortless installation, significantly reducing both time and labor costs.

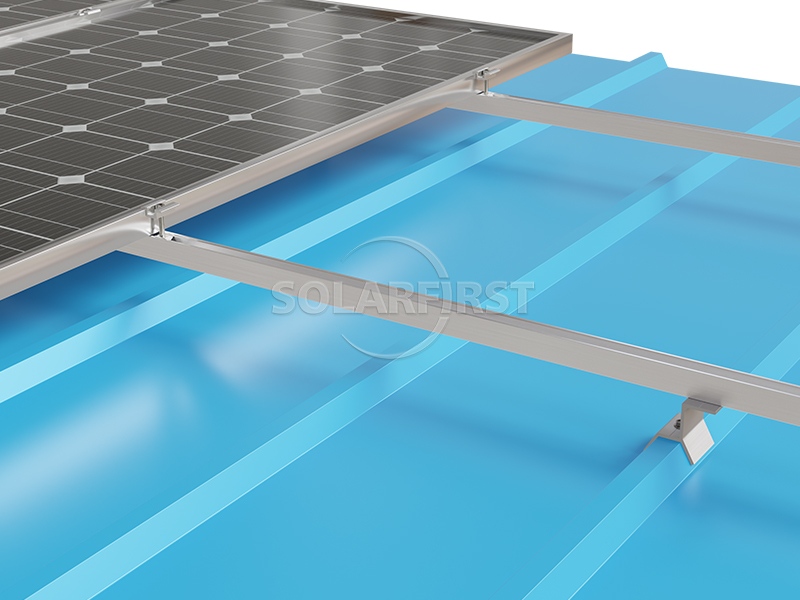

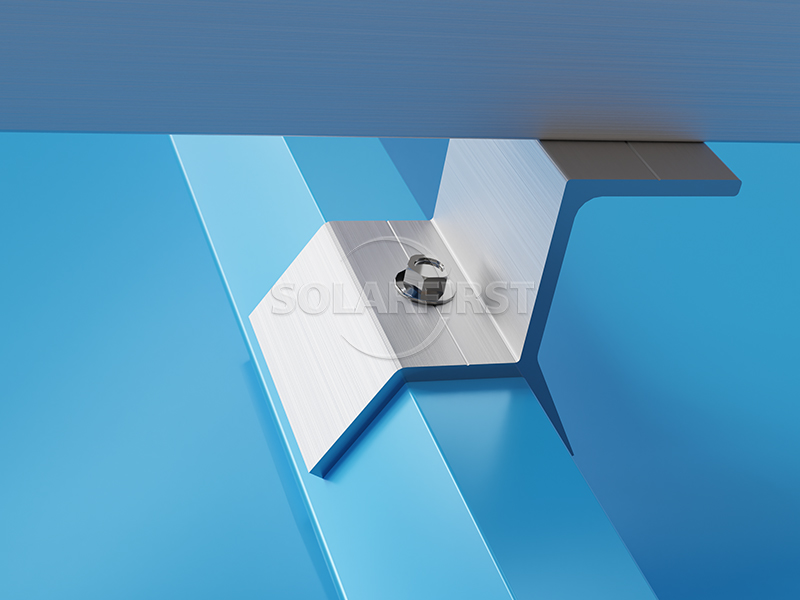

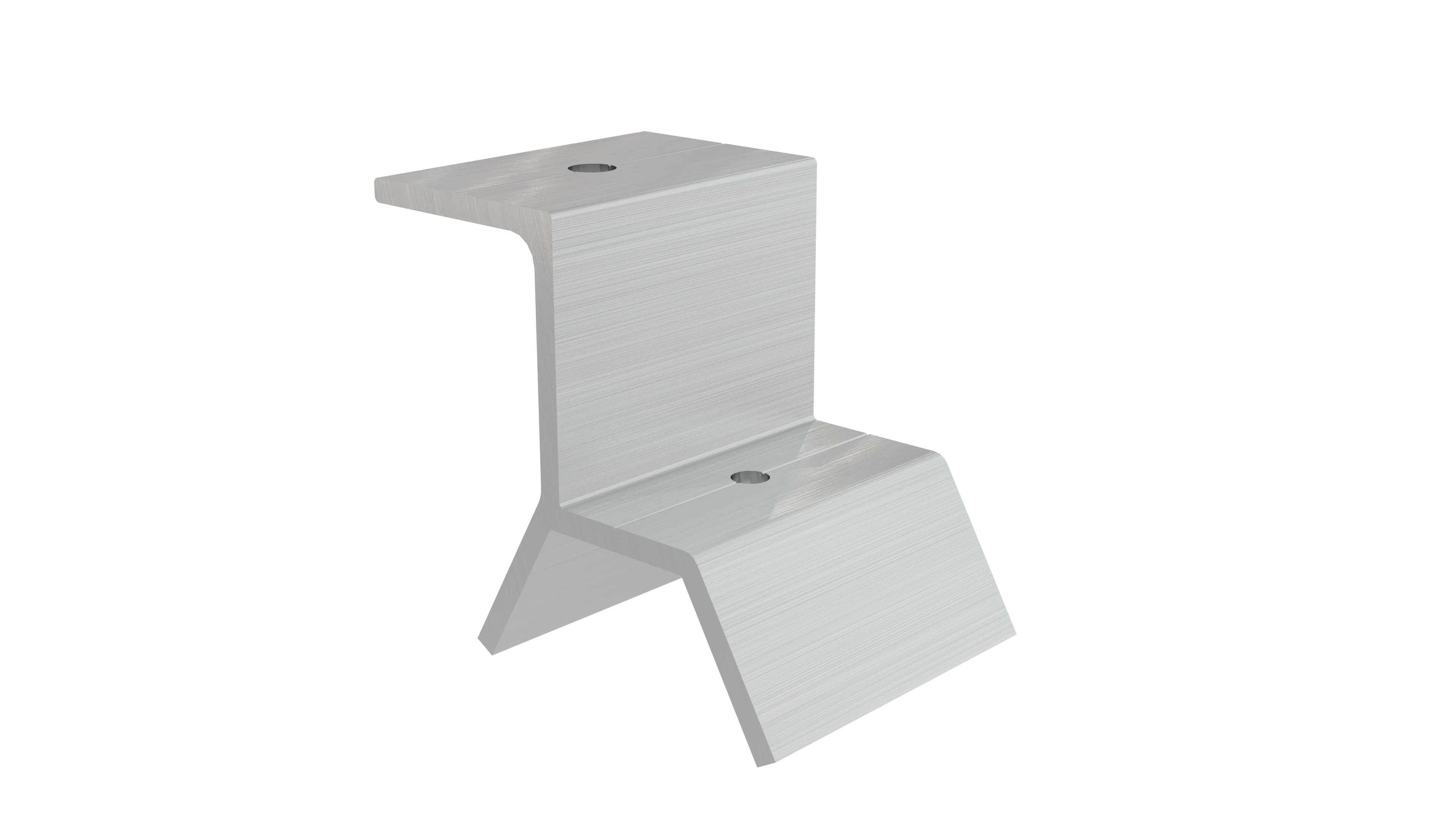

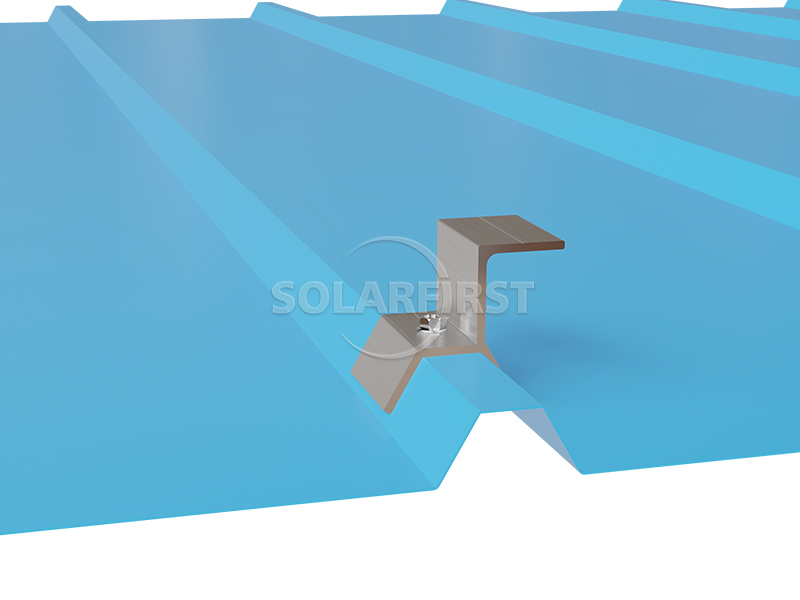

Its lightweight aluminum construction ensures the roof structure remains uncompromised. A key feature is the custom-fit trapezoid clamp, which—based on precise roof rib dimensions—attaches seamlessly to eliminate gaps and provide a firm, secure hold for your solar array.

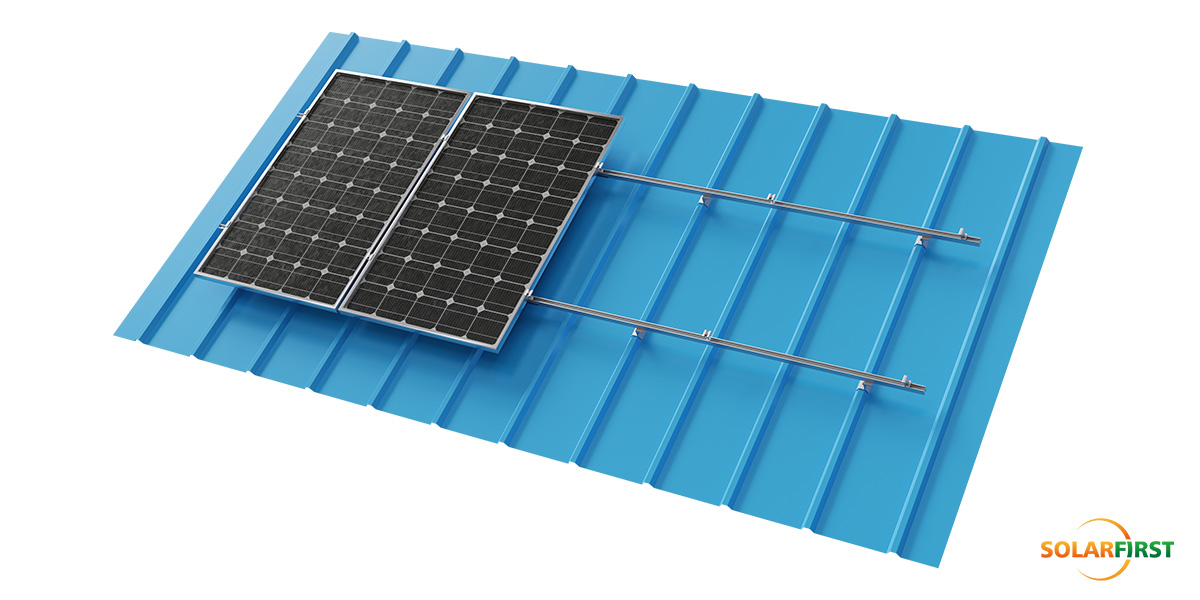

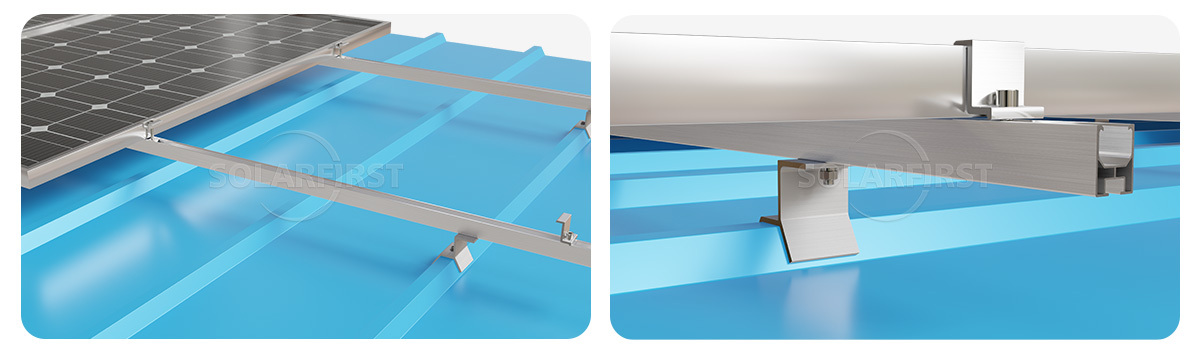

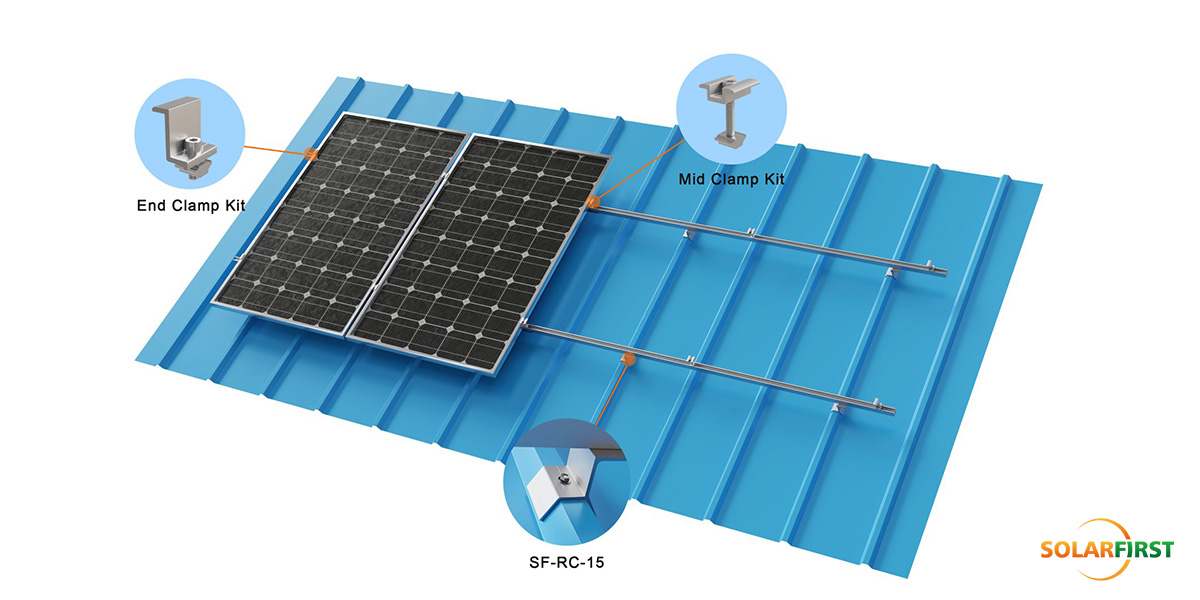

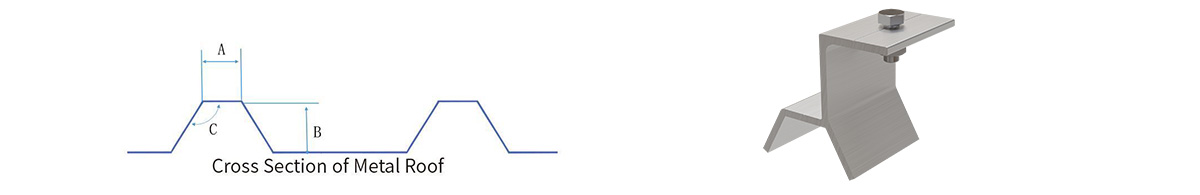

02 Accessory schematic diagram

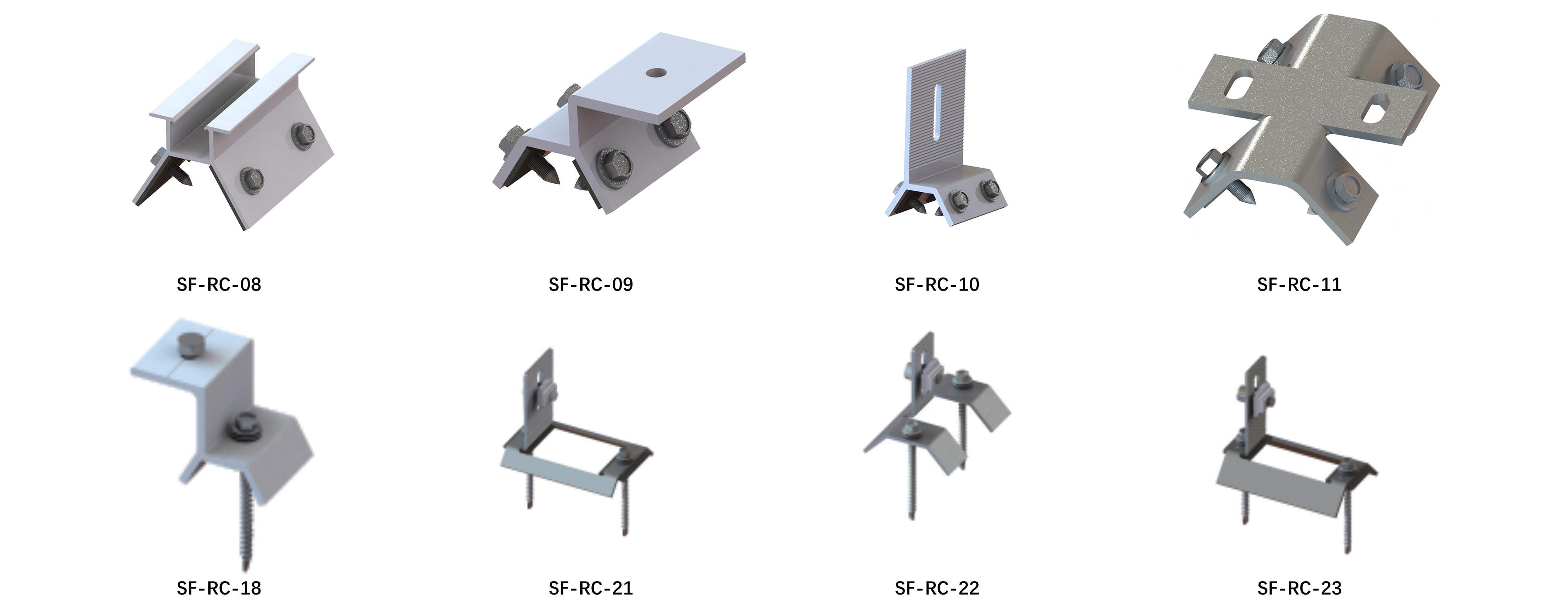

03 Product Components
| Dimensions (mm) | A | B | C(°） |
| SF-RC-08 | 28 | 34 | 122 |
| SF-RC-09 | 20 | 20 | 123 |
| SF-RC-10 | 20 | 20 | 123 |
| SF-RC-11 | 25 | 23.8 | 132 |
| SF-RC-18 | 22 | 16 | 120 |
| SF-RC-21 | 52 | 12 | 135 |
| SF-RC-22 | 33.7 | 18 | 135 |
| SF-RC-23 | 33.7 | 18 | 135 |
04 Technical Specifications
| Key indicators | Parameter details |
| Applicable roof | Trapezoidal metal tile roof |
| Wind load | 60m/s |
| Snow load | 1.4 kN/m² |
| Tilt Angle | Parallel to the roof |
| Main material | Anodized Aluminum AL 6005-T5, Stainless Steel SUS304 |
| standard | GB50009-2012, EN1990:2002, ASE7-05, AS/NZS1170, JIS C8955:2017, GB50429-2007 |
| Warranty | 10 Years Warranty |
05 Industry Application Scenarios
✔ Automotive Manufacturing Plants: Non-penetrating damage to roof membrane, high (seismic resistance).
✔ Cold Storage & Logistics Centers: Suitable for large-span steel structure warehouses, resistant to condensation corrosion.
✔ Agricultural & Commercial Canopies: Easy installation on light steel structures, reducing construction downtime.
06 Performance
▶ Wind-resistant structure:

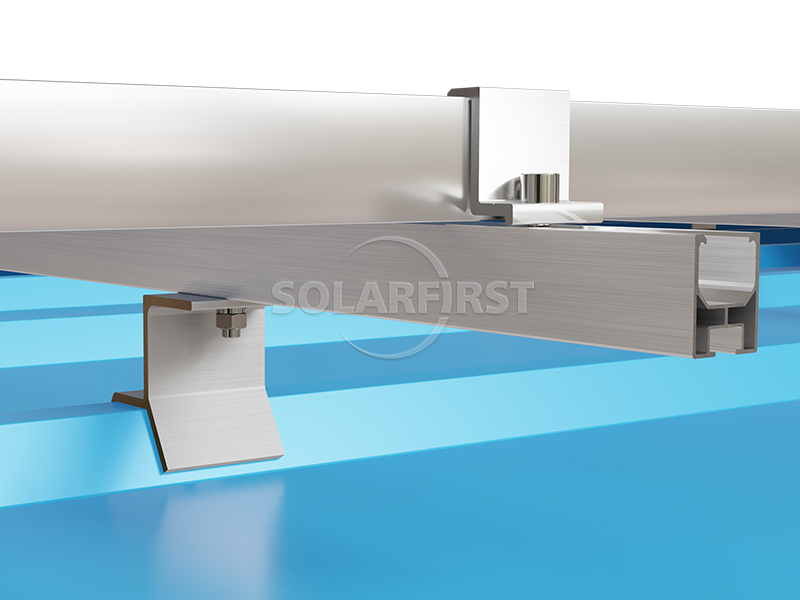

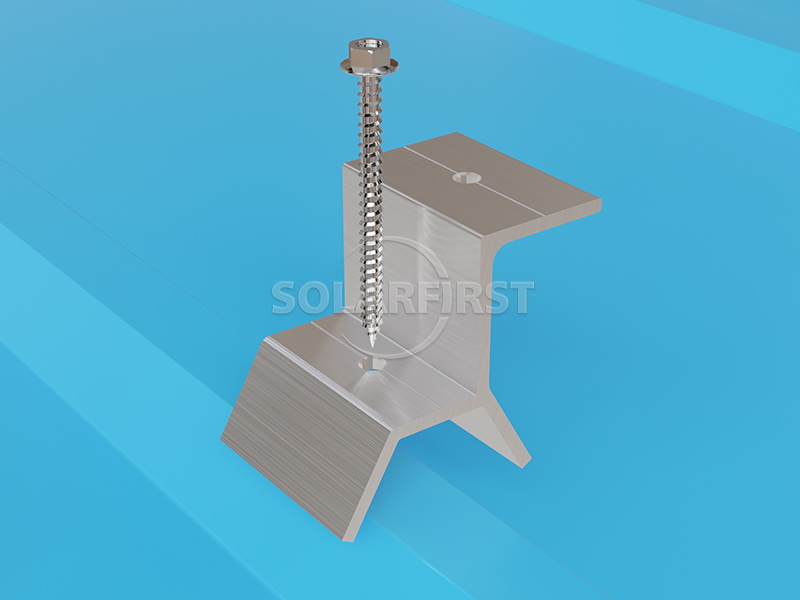

The assembly consists of three locking points: the rail-to-clamp connection, the clamp-to-sheet grip, and the screw-to-purlin anchoring. This creates a rigid mechanical interlock, effectively transferring pull-out forces directly to the building’s mainframe.
▶ Multiple-point sealed waterproofing:
Each penetration point is equipped with a high-density EPDM sealing washer and a neoprene gasket. Under compression, these materials expand to seal the drill hole, preventing capillary water ingress and offering a waterproof lifespan of up to 10 years.
▶ Corrosion resistance:
The use of marine-grade AL6005-T5 aluminum (with a 15-micron anodized layer) and SUS304 stainless steel components ensures resistance to ammonia and sulfur dioxide commonly found in livestock or industrial atmospheres.
▶ Pre-assembled design:
The clamp body comes partially pre-assembled, reducing on-site installation time by approximately 30% compared to traditional multi-piece clamps. This minimizes labor costs and installation errors.
07 FAQ
Q1: Is it compatible with the trapezoidal shape of my metal roof?
A: Please send us the specific dimensions/profile of your trapezoidal metal sheets. Our technical team will then review them and recommend a suitable mounting solution.
Q2: Is there a risk of the roof leaking after installation?
A: Our system is designed with waterproofing as a priority. We include specially formulated EPDM sealing rings that are compressed between the screw head and the metal sheet. This creates a permanent, weather-tight seal that outlasts standard rubber gaskets.
Q3: Does this kit include the screws for the purlin?

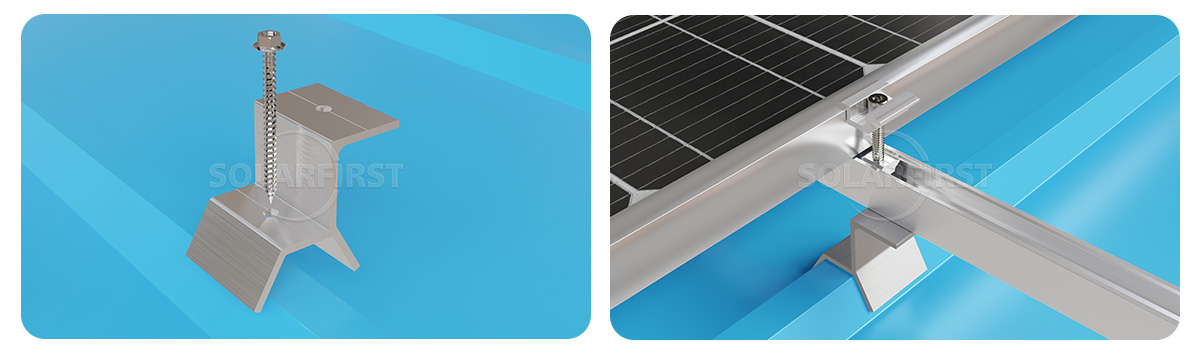

A: Yes, the package includes all necessary self-drilling screws or hex bolts designed to penetrate the steel sheet and embed into the steel purlin below. The hardware kit is complete as shown in the product image.
Q4: What is the difference between this penetrating clamp and a non-penetrating clamp?
A: Non-penetrating clamps (or compression clamps) rely on friction and weight. Our penetrating clamp provides a positive mechanical bond with the building structure. It is the recommended solution for regions with typhoons, hurricanes, or high wind speeds, offering significantly higher uplift resistance.
Q5: Can these clamps be used with any solar rail?
A: The top channel of the clamp is designed to accept standard T-bolts or slot nuts. If you have a specific rail brand, please confirm the slot width with us beforehand, or we can supply compatible mounting rails as a complete system.
08 Packages & Shipping
Packaging standard: Standard export wooden cases / cardboard boxes + wooden pallets (for impact protection)
Port: Shanghai / Ningbo / Shenzhen / Tianjin
Delivery time: 7-15 days (depending on order quantity)

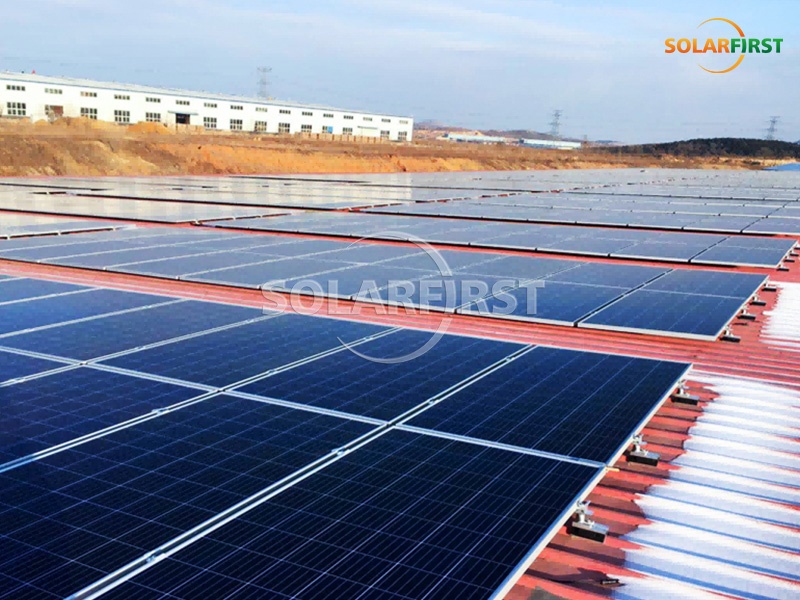

09 Project Case
